Plain Surface Cast Iron 5.6 Grade Rail Shoulder

Customization:	Available
Customized:	Customized
Certification:	ISO9001

📋 Basic Information

Model NO.

For rail UIC54, UIC60, 115RE, 50kg, 60kg rail

Type

Shoulder

Material

Qt500-7 (Ggg50) / Qt450-10

Condition

New

Surface

Plain (Oiled)

Keywords

Rail Shoulder

Usage

Pre-Stressed Concrete Ties

Origin

China

HS Code

8608009000

Production Capacity

1000 Boxes Per Month

🔍 Product Introduction

Plain Surface Cast Iron 5.6 Grade Rail Shoulders are expertly cast into concrete ties to provide secure fixation for Elastic Rail Clips. These Iron Shoulders are manufactured using high-quality pearlitic malleable iron (M.C.I. Inserts) and spheroid graphite iron (S.G.C.I. Inserts) to ensure maximum durability and performance under heavy rail loads.

We offer two primary configurations to meet diverse railway engineering needs:

Single Stem Iron Shoulders: Primarily utilized in pre-stressed concrete ties.
Twin Stem Iron Shoulders: Optimized for Bi-Block or Twin Block concrete ties.

Our shoulder accessories are engineered for specific rail sections, maintaining strict design criteria to ensure correct elastic clip toe loading. Milled weld area faces are available on certain models to enhance weld integrity during installation.

📊 Technical Parameters

Feature	Specification Details
Name	Plain Oiled / Black Treated Cast Iron Shoulder
Compatible Rails	UIC54, UIC60, 115RE, 50kg rail, 60kg rail, BS80lbs, BS100lbs (or Custom Drawings)
Material Grade	QT500-7 (GGG50)	QT450-10 (GGG45)	QT400-15 (GGG40)
Chemical Comp. (%)	C:3.6-3.8, Mn:≤0.6, Si:2.5-2.9	C:3.4-3.9, Mn:0.2-0.5, Si:2.7-3.0	C:3.5-3.6, Mn:≤0.5, Si:3.0-3.2
Surface Finish	Plain (Oiled)

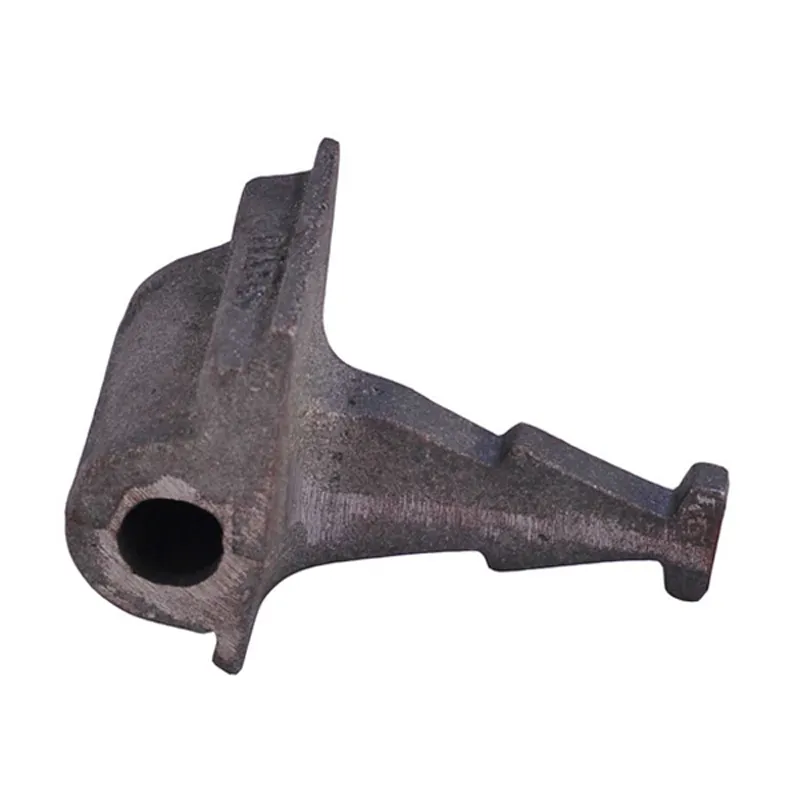

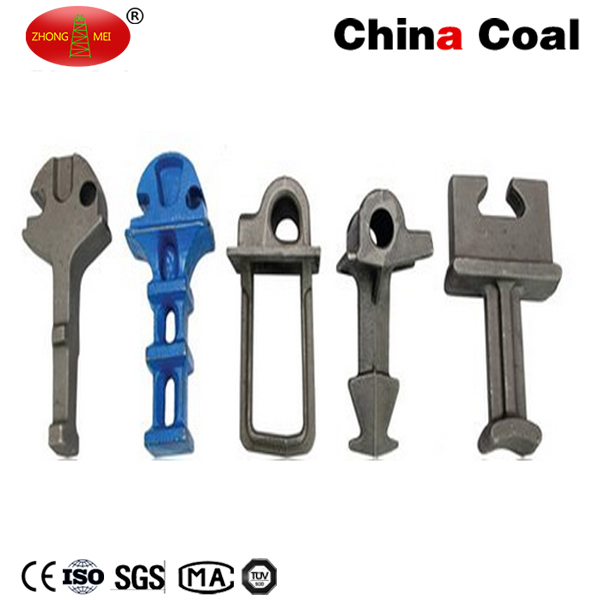

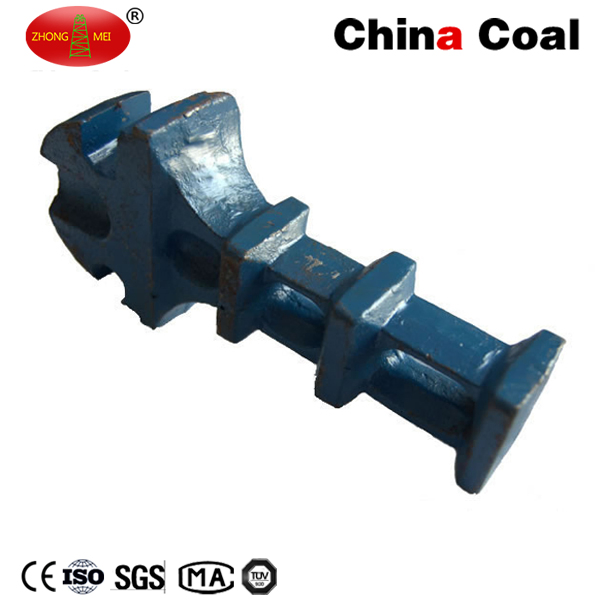

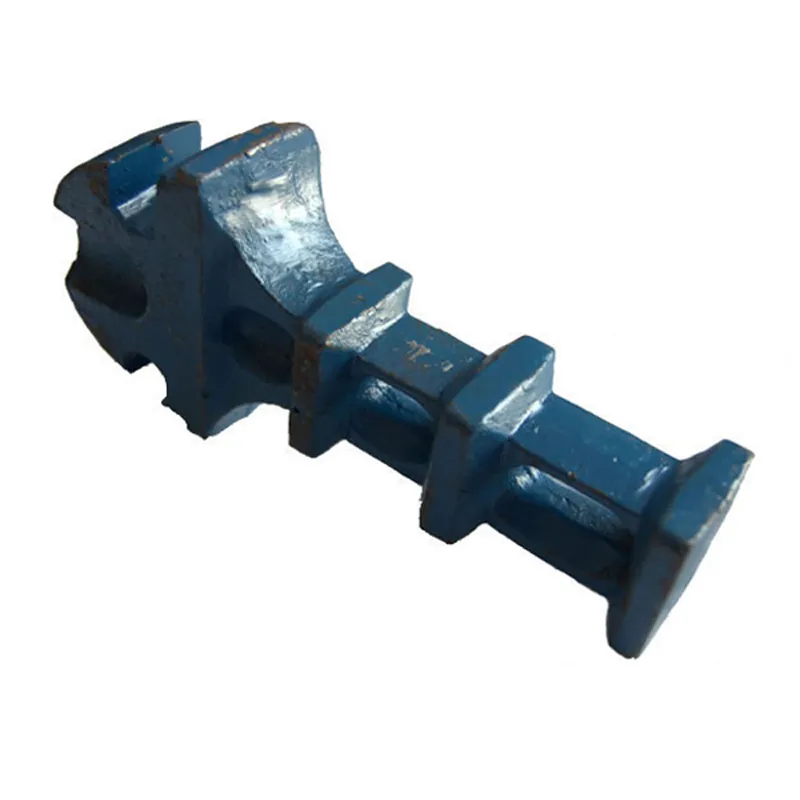

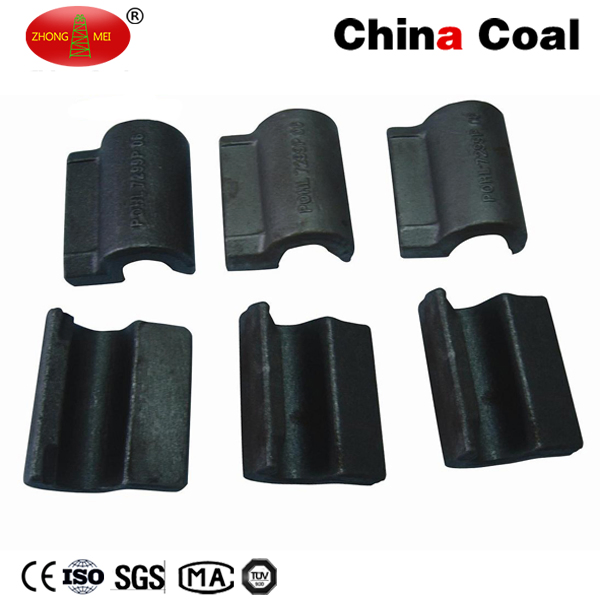

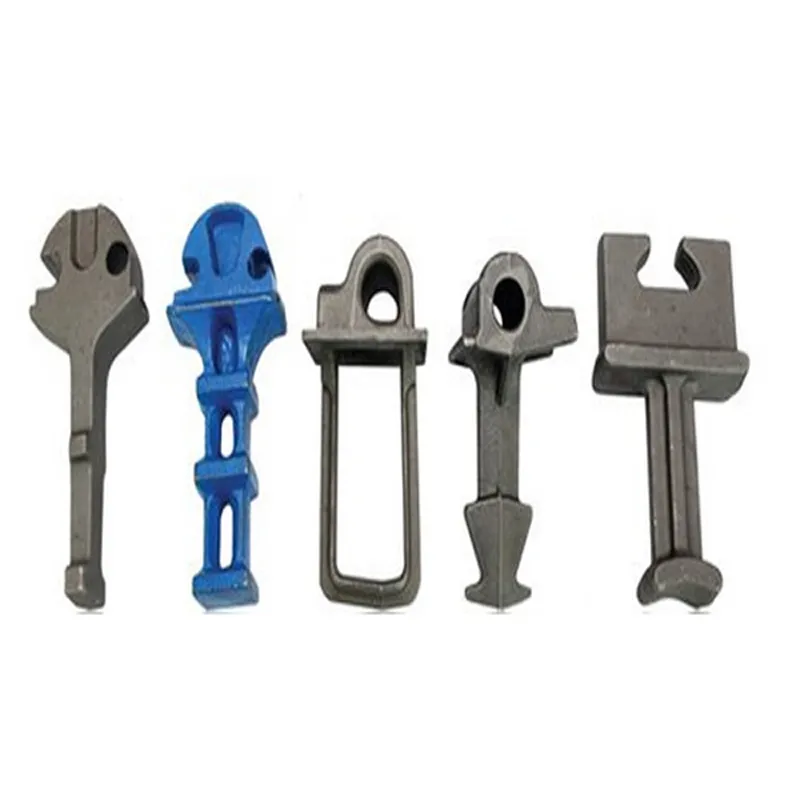

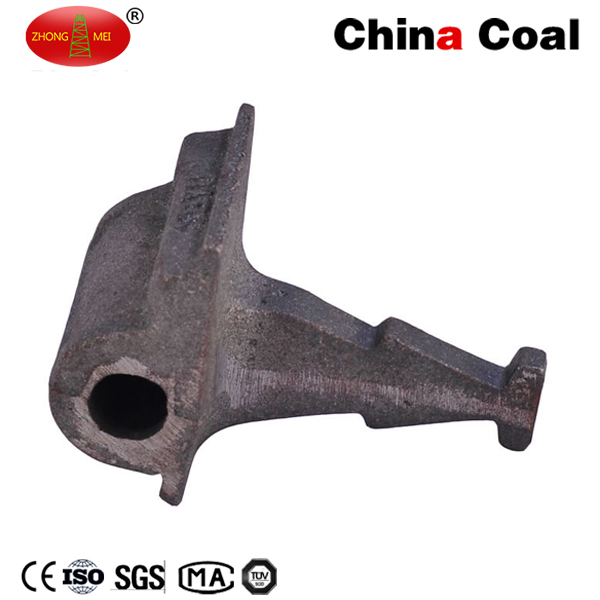

🖼️ Product Gallery

💡 Frequently Asked Questions

What materials are used for these rail shoulders?

Our rail shoulders are manufactured from high-grade Spheroid Graphite Iron (S.G.C.I.) including QT500-7 (GGG50), QT450-10, and QT400-15.

Which rail types are compatible with your shoulders?

They are compatible with a wide range of standards including UIC54, UIC60, 115RE, 50kg, 60kg, BS80lbs, and BS100lbs rail sections.

What is the difference between Single Stem and Twin Stem shoulders?

Single Stem shoulders are typically used in pre-stressed concrete ties, while Twin Stem shoulders are designed for Bi-Block or Twin Block concrete ties.

Does the product come with surface protection?

Yes, the standard finish is a plain oiled surface to prevent corrosion, though black treated options may also be available.

Can you manufacture shoulders based on custom designs?

Yes, we can produce rail shoulders according to specific technical drawings provided by customers to meet unique project requirements.

What is your monthly production capacity for this item?

Our current production capacity is approximately 1000 boxes per month, ensuring a steady supply for large-scale railway projects.
