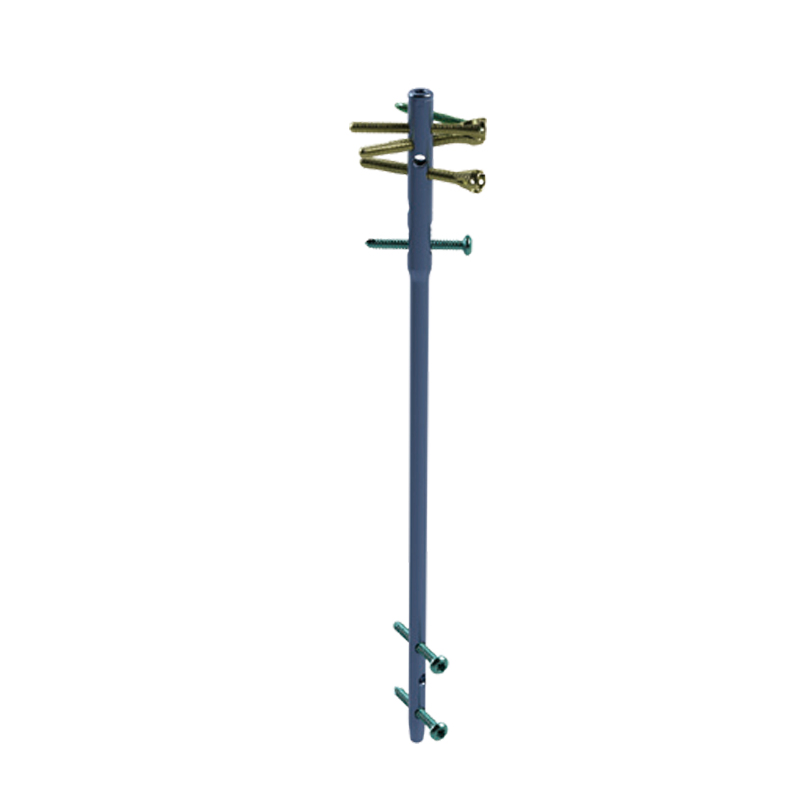

Premium Humeral Intramedullary Nail for Enhanced Fracture Support

Proximal humeral fractures are among the most common fractures, accounting for 4%–5% of all fractures. Mechanism of injury: Usually occurs when the elbow strikes the ground or the arm is braced during a fall, especially in elderly patients, or when the shoulder joint directly sustains external force.

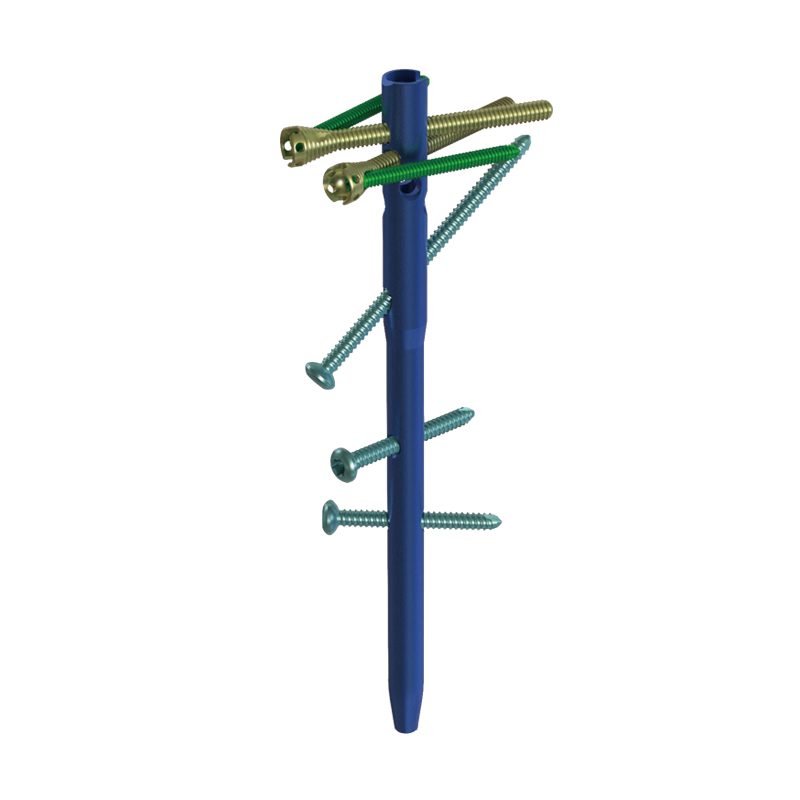

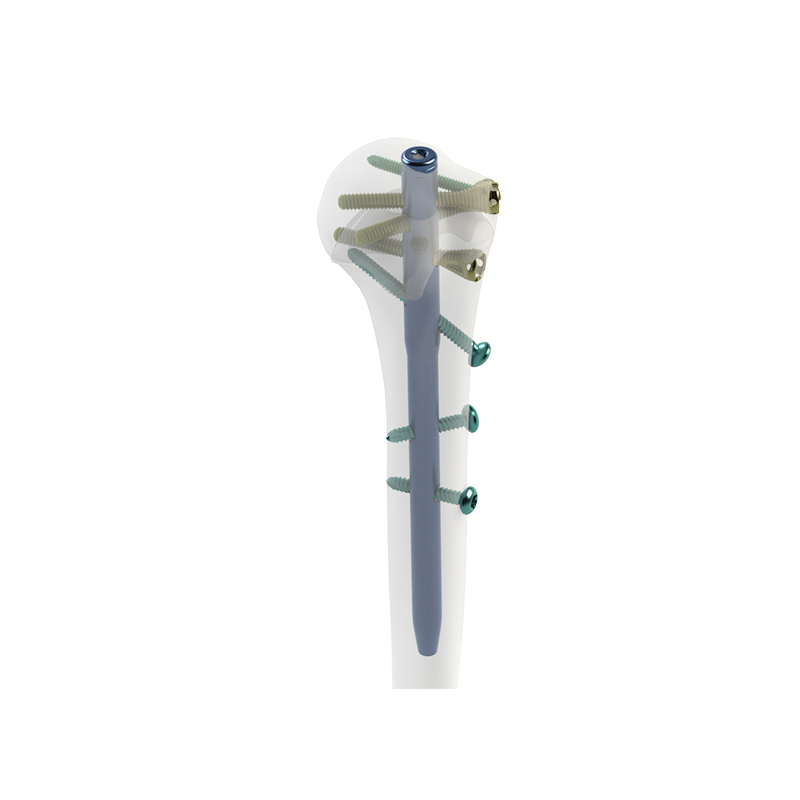

• Unique and innovative "nail-in-nail" technology to enhance the fixation effect of proximal locking screws.
• Proximal screws are countersunk screws, with at least three lateral screws implanted to ensure basic structural stability.
• Oblique upward supporting lock provides more stable medial support for the humeral head.
• Multi-planar distal locking to avoid neurovascular structures while providing stable fixation.
• Central implantation of the main nail with an ultra-low notch design to protect the supraspinatus muscle and surrounding tissues.

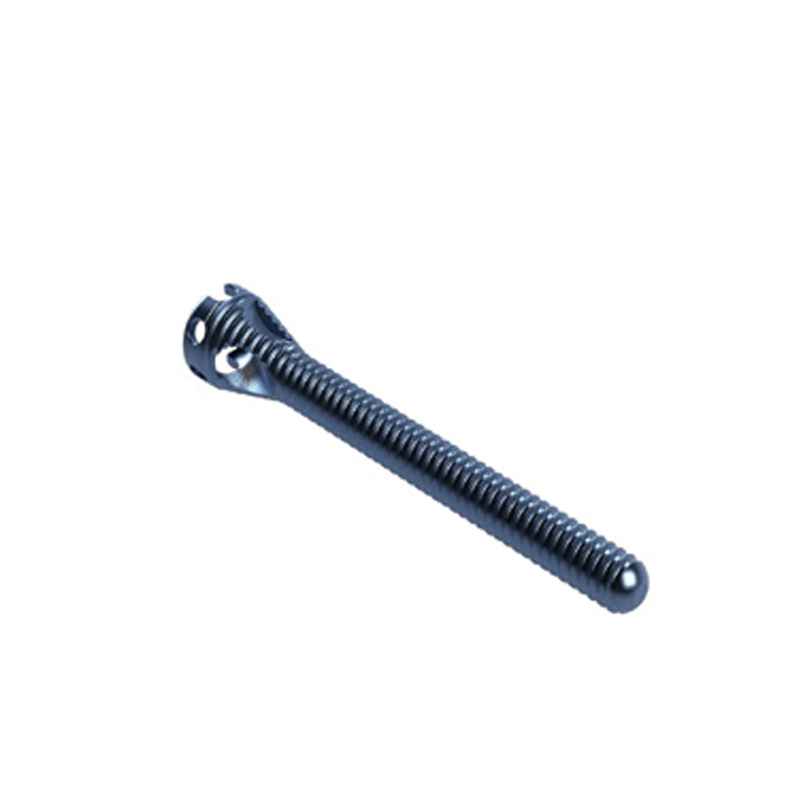

Ø3.5 mm interlocking screws: Additional interlocking screws ("screw-in-screw" technique) can be inserted through the head of the lateral screws to enhance internal fixation stability. Particularly effective for patients with poor bone quality.

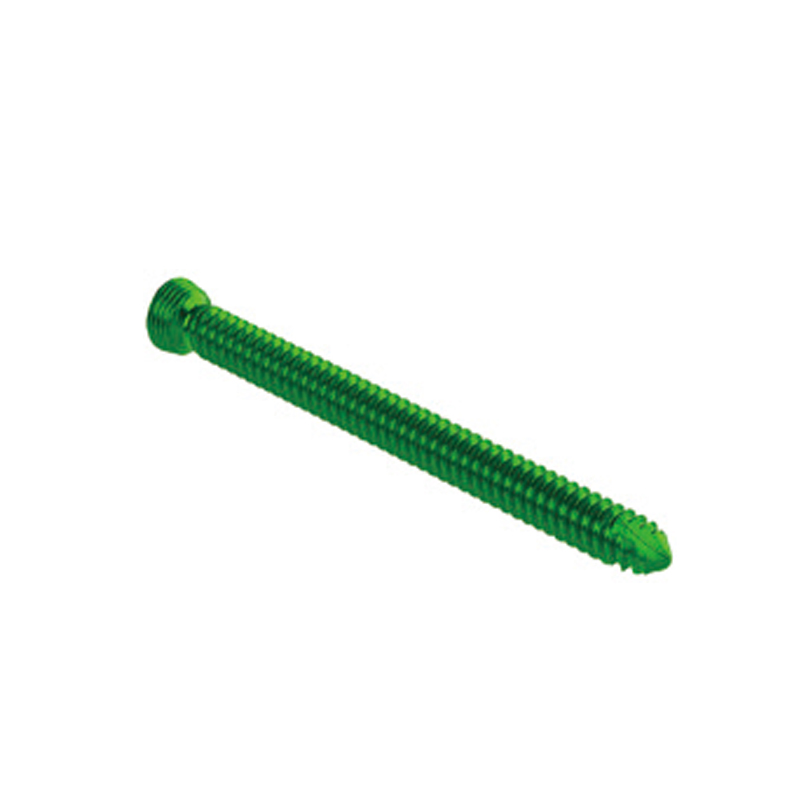

Ø4.5 mm interlocking screws: Three screws inserted laterally into the greater tuberosity must be used in all fracture cases to ensure basic structural stability.

Ø4.0 mm ascending screw: Supports the medial calcar region of the humerus, helping to stabilize fractures with medial comminution.

Ø4.0 mm interlocking screws: Two distal interlocking screws are positioned in different planes to reduce implant toggling.

• Two-part surgical neck fractures of the humerus
• Three-part surgical neck fractures of the humerus
• Four-part surgical neck fractures of the humerus

• Proximal humeral fractures combined with humeral shaft fractures
• Humeral shaft fractures
• Impending pathological fractures

Professional Orthopedic Manufacturer You Can Trust

We are a leading manufacturer of standardized orthopedic implants and instruments for global distributors and importers. We offer a full product range covering trauma, spine, joints, sports medicine, and CMF — all supported by complete surgical instrument sets.

With in-house R&D, a certified lab, and modern production lines, we also support OEM/ODM services for partners who need private label or custom solutions.
