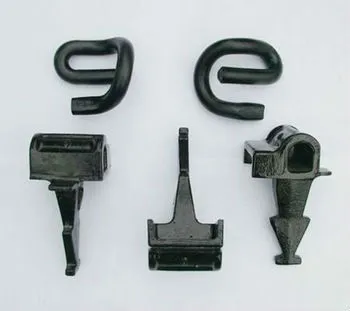

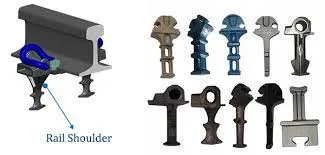

Rail shoulder, also widely known as rail iron shoulder, is a critical component primarily used for casting into concrete ties to securely fixate elastic rail clips. These components ensure the stability and safety of the rail track by providing reliable fastening points.
➤

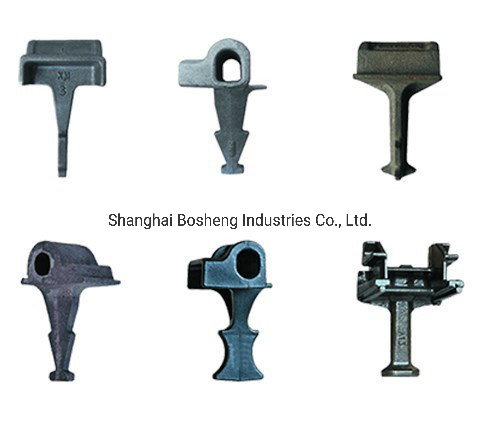

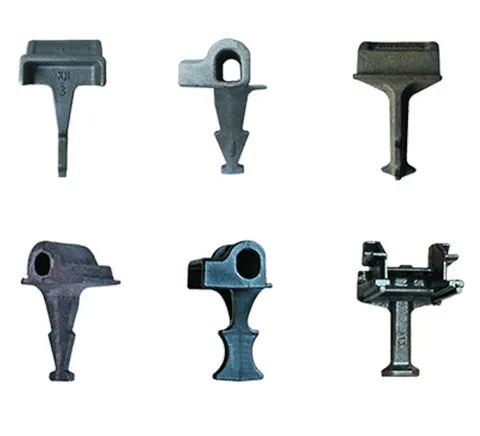

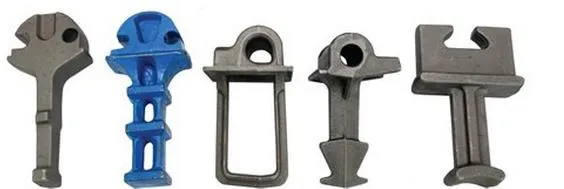

Classification by Shape: Available in Single Stem Rail Iron Shoulder and Twin Stems Rail Iron Shoulder designs.
➤

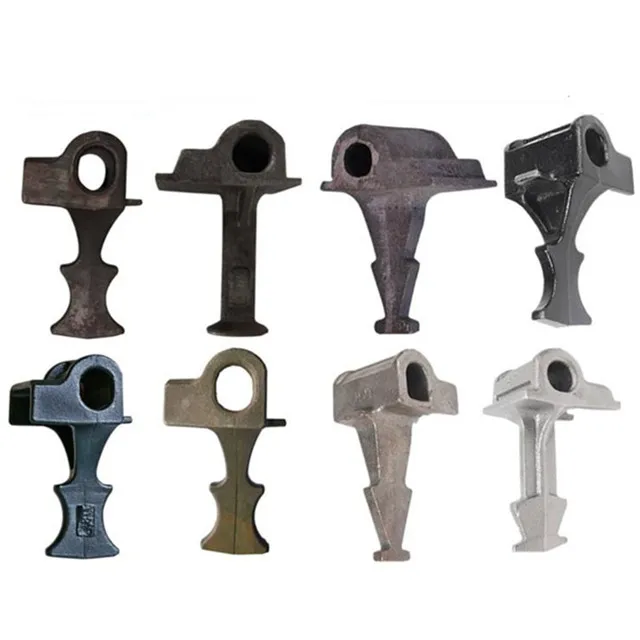

Manufacturing Methods: Produced via casting, weld-on techniques, or hot forging to meet diverse engineering needs.
➤
Functional Design: Embedded directly into concrete during the casting process to grip the clips effectively and provide essential lateral support to the rail.

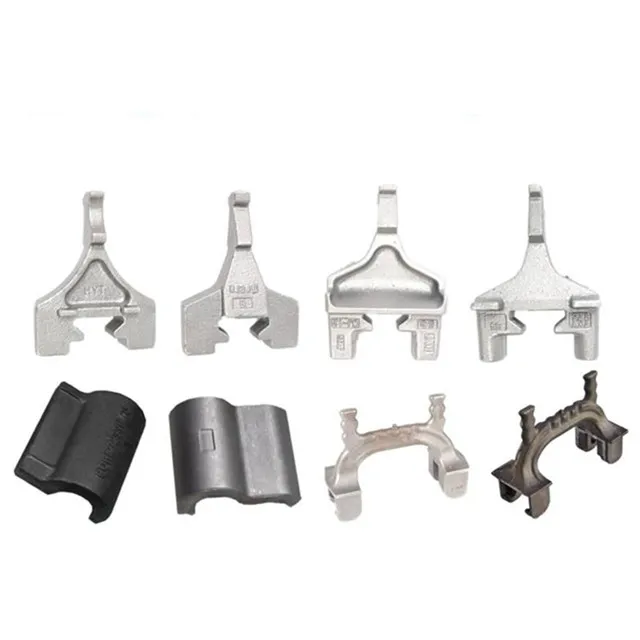

Our range includes two primary commercial types: Cast-in Shoulders and Weld-on Shoulders. For pre-stressed concrete ties, Single Stem Iron Shoulders are typically utilized, while Twin Stem Iron Shoulders are the preferred choice for Bi-Block or Twin Block concrete ties.
As an ISO 9001/2008 certified manufacturer, we adhere to a rigorous quality management system. From raw material sourcing to the final inspection, every step follows standardized procedures:
01
Material Inspection: Before production begins, all raw materials are tested for chemical composition and mechanical properties. Batch numbers and indicators must meet strict internal standards.
02
Process Sampling: Quality control inspectors perform random sampling and batch testing during the manufacturing phase to ensure consistency.
03
Physical & Chemical Testing: Based on specific project requirements, we conduct specialized physical and chemical analysis. Substandard materials are immediately rejected.
04
Final Verification: We organize regular quality coordination meetings and provide technical guidance to ensures that only qualified products are delivered to our global customers.
❓ Frequently Asked Questions
➢ What is the main purpose of a rail shoulder?
A rail shoulder is embedded in concrete ties to provide a fixed anchor point for elastic rail clips, which in turn hold the rail in place and provide lateral stability.
➢ What are the differences between single and twin stem shoulders?
Single stem shoulders are generally used in pre-stressed concrete ties, while twin stem shoulders are designed for Bi-Block or twin block concrete ties.
➢ Which manufacturing processes do you offer for these components?
We offer casting, welding (weld-on), and hot forging manufacturing methods to suit different railway construction standards.
➢ How do you ensure the quality of the rail iron shoulders?
We follow ISO 9001 standards, including rigorous raw material testing (chemical and mechanical), sampling during production, and final batch inspections before shipping.
➢ Can these shoulders be used for all types of rails?
Rail shoulders are designed to match specific tie types and elastic clip systems. Our BS model is highly versatile for standard high-quality railway applications.
➢ What are the transport packaging options?
Standard products are packed in secure bundles using steel wire rods to ensure safety and integrity during long-distance transportation.
