Basic Information
Usage
Correct Deformities, Fracture Fixation
Type
Bone Fracture Fixation
Properties
Implant Materials & Artificial Organs
Application
Orthopedic Surgery
Instrument Classification
Class III
After-Sale Service
Online Technical Support
Production Capacity
10000 pieces/Year

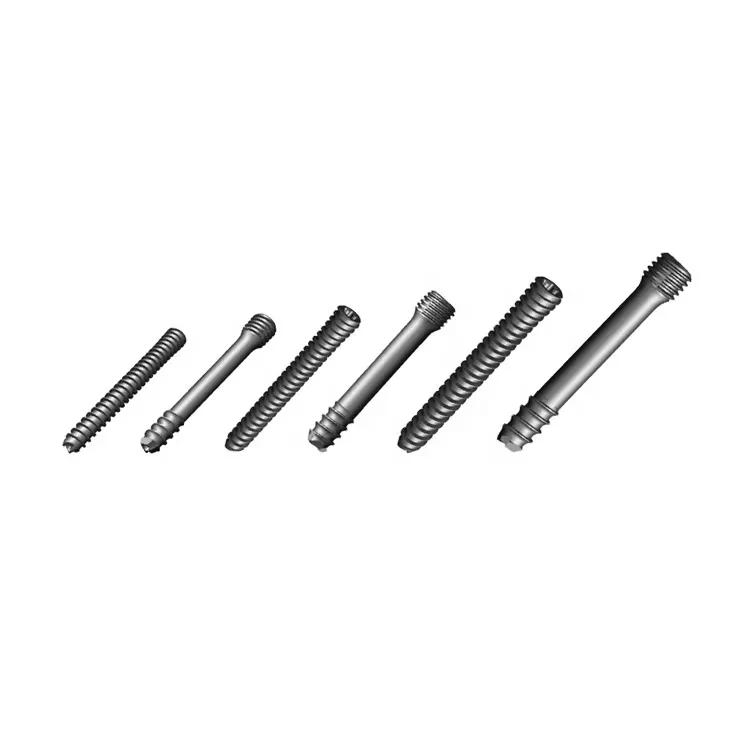

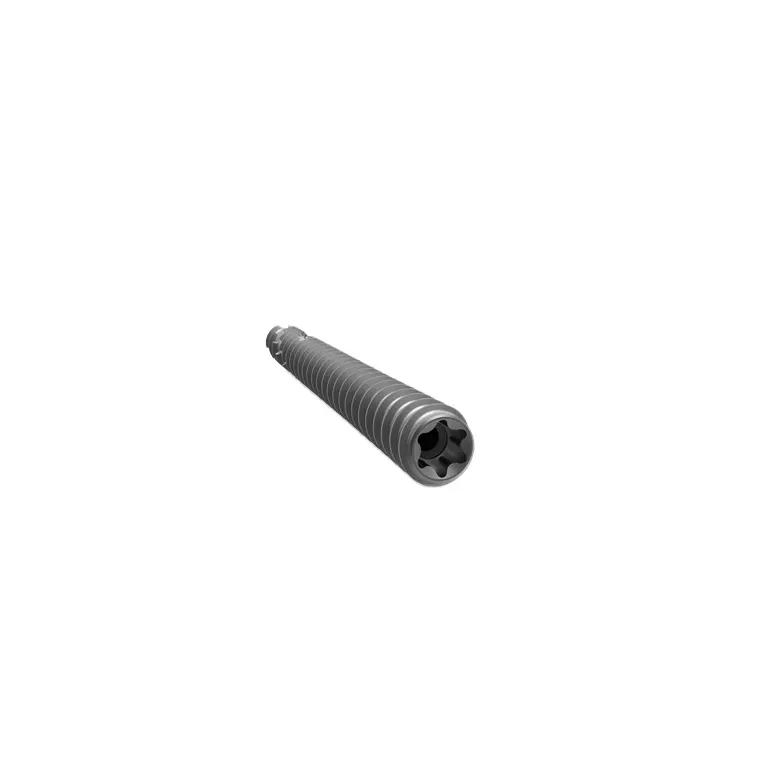

Product Description
1
When the screw is implanted, the fracture is well compressed by the thread, which will increase the stability of the fracture.
2
After insertion, it can keep compressing function under periodic forces.
3

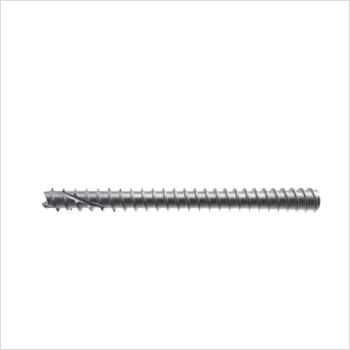

The thread pitch, which is bigger in the head, varies from the head to the tail, ensuring the screw head enters the bone faster than the tail for optimal compression.
4
Superior performance of the triangular blades makes it easy to implant and remove the screw.
5
The headless design allows the screw tail to be embedded in the bone surface, reducing stimulation of the soft tissue.
6

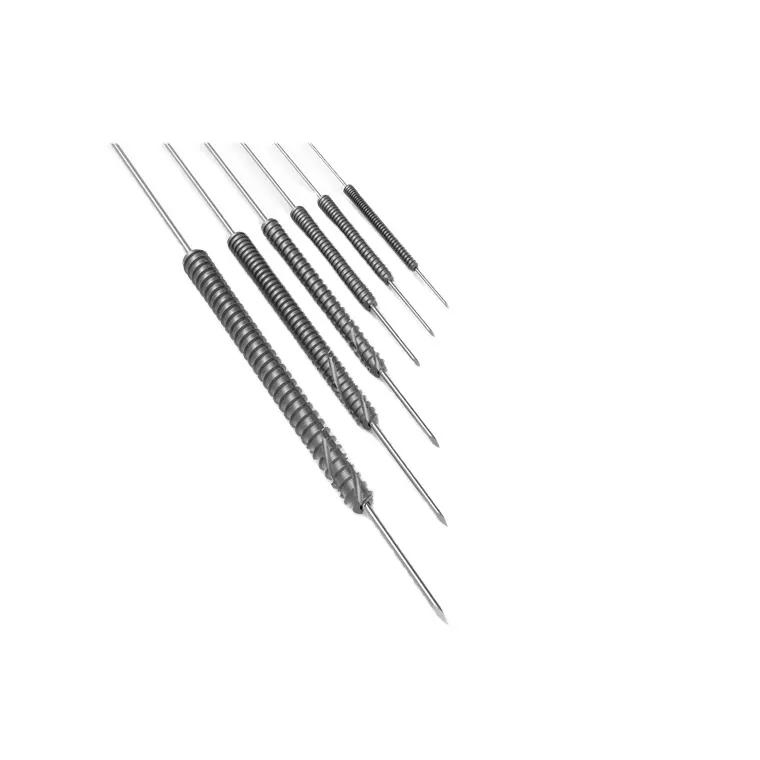

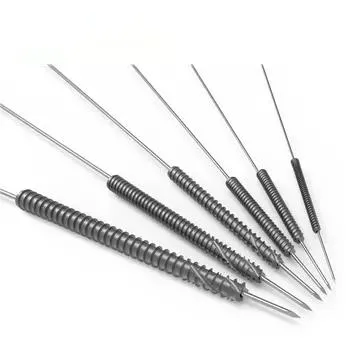

With the guidance of a guide wire, percutaneous implantation is more efficient.
7
Both the screw head and tail have bilateral edges which reduce the risk of hole cracking during insertion or removal.

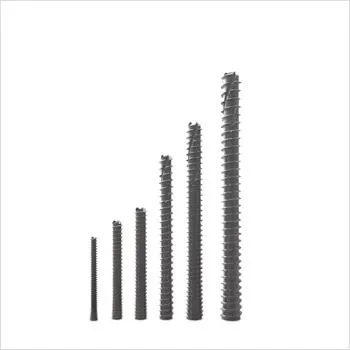

Specifications
| Types |
Diameter |
Length |
| 3.0 | Body 2.5mm / Tail 3.0mm | 6-14mm (1mm int.) / 14-30mm (2mm int.) |
| 3.5 | Body 3.5mm / Tail 3.6mm | 16-30mm (2mm intervals) |
| 4.0 | Body 4.0mm / Tail 4.1mm | 16-34mm (2mm intervals) |
| 4.5 | Body 4.5mm / Tail 4.7mm | 20-30mm (2mm) / 30-50mm (5mm) |
| 5.0 | Body 5.0mm / Tail 5.5mm | 25-60mm (5mm intervals) |
| 7.3 | Body 7.0mm / Tail 7.3mm | 60-120mm (5mm intervals) |
*All the prices are only for reference. Exact price will be based on the latest quotation.
Frequently Asked Questions
What is the primary material used for these compression screws?
The screws are made from high-grade Titanium, which is ideal for orthopedic implants and artificial organs.
How does the headless design benefit the patient?
The headless design allows the tail to be embedded within the bone, significantly reducing irritation or stimulation of the surrounding soft tissue.
What certifications do these orthopedic screws carry?
Our products are certified with CE and ISO13485 standards, ensuring they meet international medical quality requirements.
Are the screws provided in a sterile condition?
Yes, the products come in a sterile package, ready for surgical use.
What is the warranty period for this product?
We provide a one-year warranty along with online technical support for after-sale service.
Can the color of the screws be customized?
Yes, the color can be adjusted according to your specific request.
