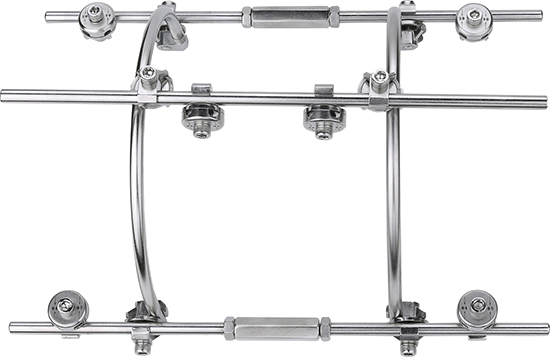

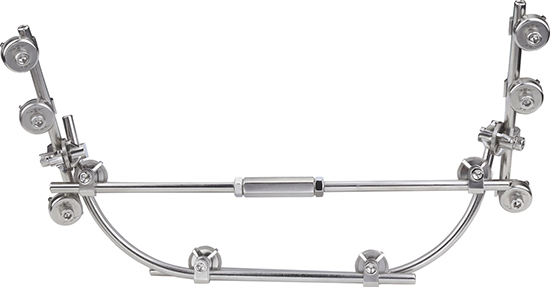

Parts & Instruments of Cyclic Annular External Fixator External Fixation

Customization:	Available
Application:	Orthopedic, Neurosurgery, Microsurgery
Material:	Steel

Basic Specifications

Model NO.

External Fixation

Feature

Reusable

Certification

CE, ISO13485

Color

White & Black

Usage

Bone Fixation

Material Type

Titanium Alloy & Stainless Steel

Transport Package

Box

HS Code

90211000

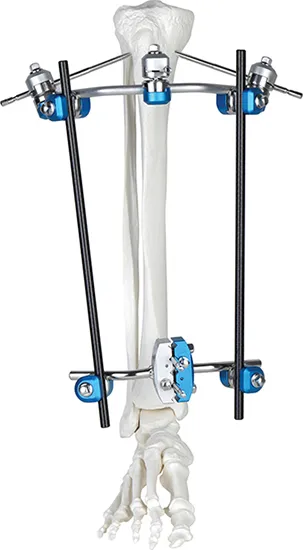

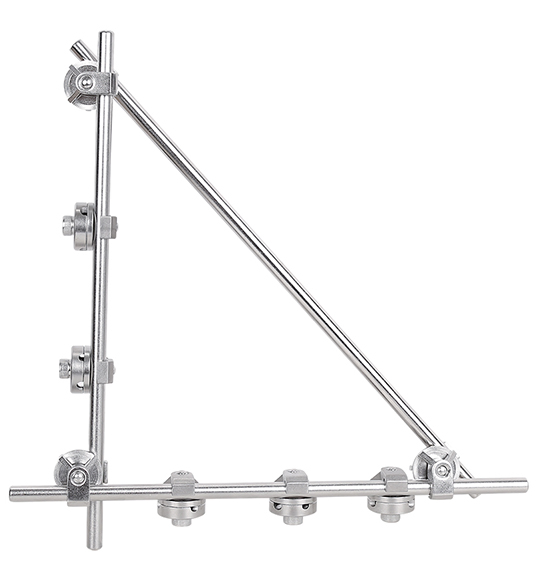

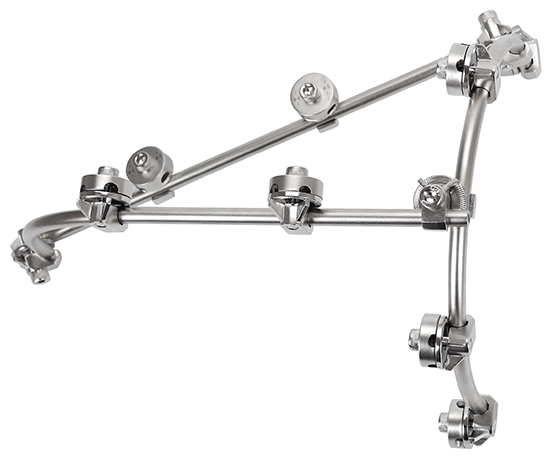

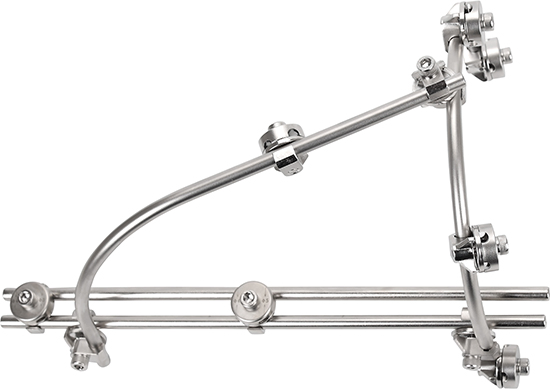

External Fixator - Modular Fixation Systems

Groundbreaking technology with intuitive, user-friendly operation.
Independent arrangement of bone screws for proximal and distal management.
Snap-fit design for streamlined and time-efficient surgical procedures.
Premium Medical aluminum and carbon fiber for enhanced fracture visualization.
Unparalleled stability and flexibility for diverse medical needs.
Compact, space-saving frame for ease of use and transport.
Designed for complex fractures and soft tissue loss.

Components & Instrument Specifications

Component Description	Specification	Qty
Pin To Rod Coupling	φ8/4-5	12
Rod To Rod Coupling	φ8/8	12
5-Hole Pin Clamp	φ8/5	3
Straight Post	φ8	2
30° Post	φ8	4
Self Drilling/Tapping Bone Screws	φ5*180 / 150 / 130 / 120	20
Carbon Fibre Rod	φ8*350 / 300 / 250 / 200	12
Semi-Circular Curved Connecting Rod	φ8*160 / 200	2
T-Wrench / Torque Wrench	#7	2

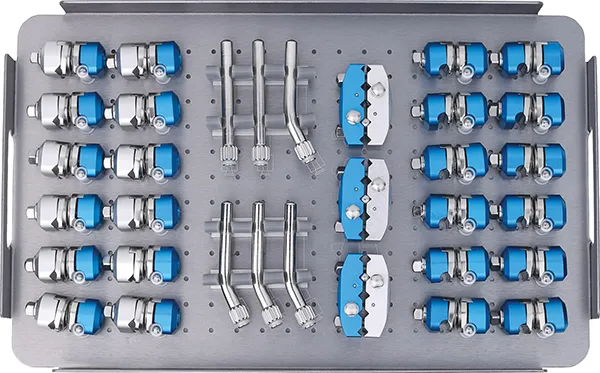

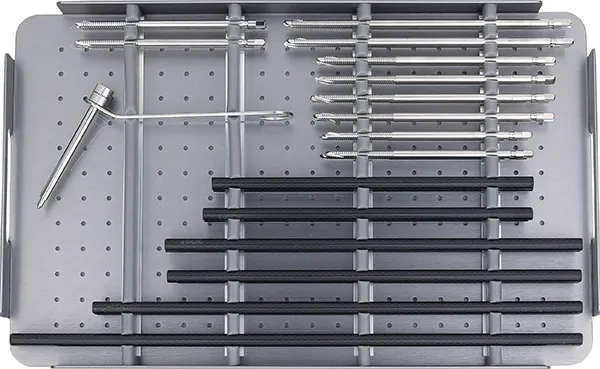

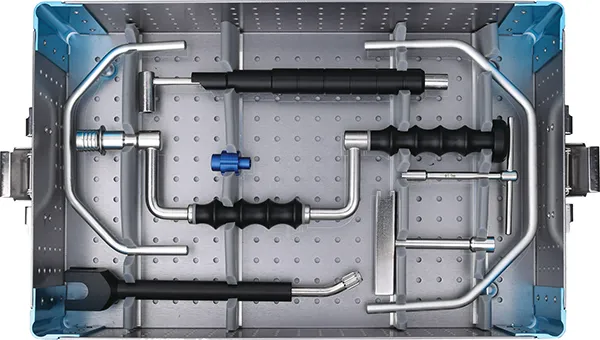

Instrument Set	Standard	1

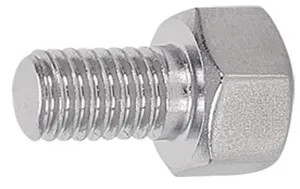

M6 Bolt
Material: Stainless Steel

Half Threaded Rod
Size: M6*120-80
Material: Stainless Steel

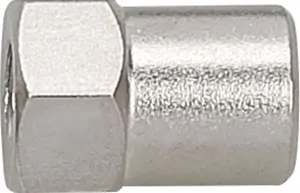

Trapezoidal Nut
Size: M6
Material: Stainless Steel

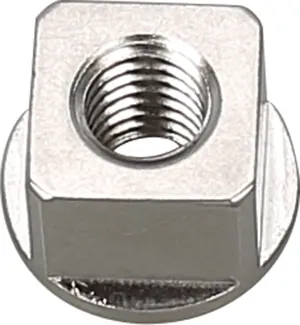

Nuts And Washers
Size: M6
Material: Stainless Steel

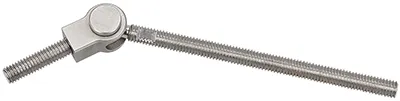

Hxis Hinge
Material: Stainless Steel

Drill Bit Limitation
Size: φ2/2.5/3/4mm
Material: Stainless Steel

S-Threaded Rod
Size: M6*65/85/100/120/150
Material: Stainless Steel

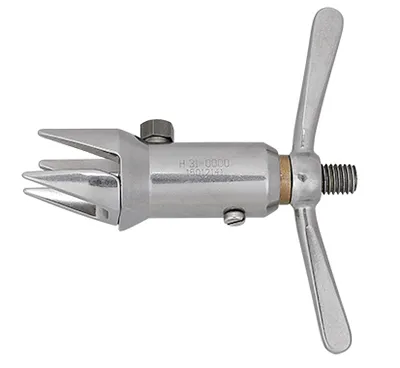

K-Wire Tension Pin
Size: φ1.5-3.0mm
Material: Stainless Steel

Frequently Asked Questions

What is the primary material used in the External Fixator?

The system utilizes high-grade Titanium Alloy, Stainless Steel, and Carbon Fiber to ensure both strength and lightweight performance.

Is the external fixation system reusable?

Yes, the system is designed to be reusable after following proper sterilization and maintenance protocols.

What certifications do these medical devices hold?

Our external fixation products are fully certified with CE and ISO13485 standards, meeting international medical quality requirements.

Does the carbon fiber rod offer advantages during X-rays?

Absolutely. Carbon fiber materials provide excellent radiolucency, allowing for clearer visualization of the fracture site during follow-up imaging.

What types of fractures is this system suitable for?

It is expertly designed for complex fractures, proximal and distal bone management, and cases involving significant soft tissue loss.

How does the snap-fit design benefit the surgeon?

The snap-fit design allows for faster assembly and adjustment during surgery, significantly reducing operative time and improving procedural efficiency.
