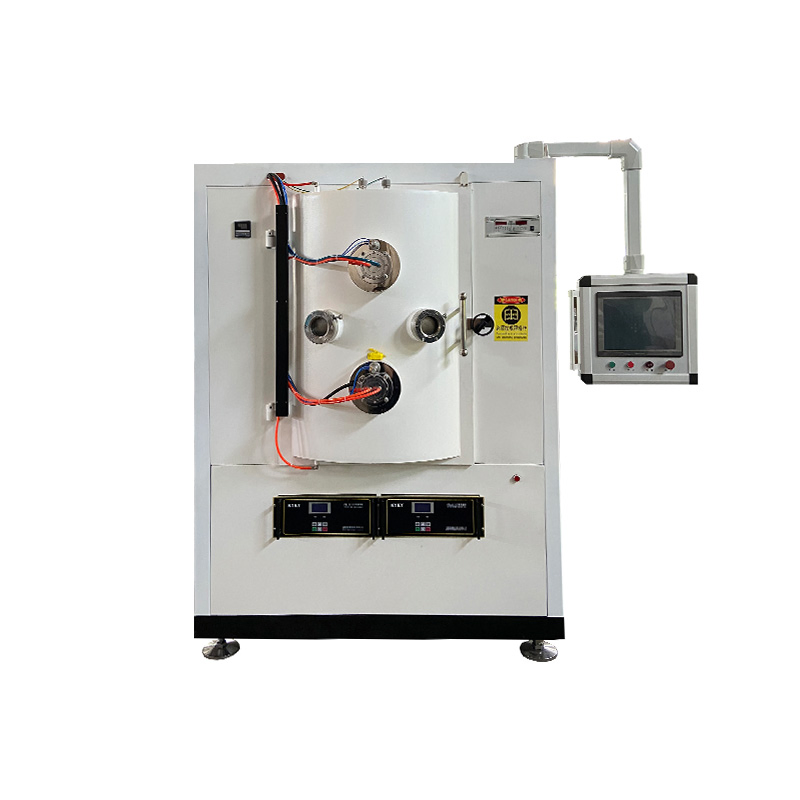

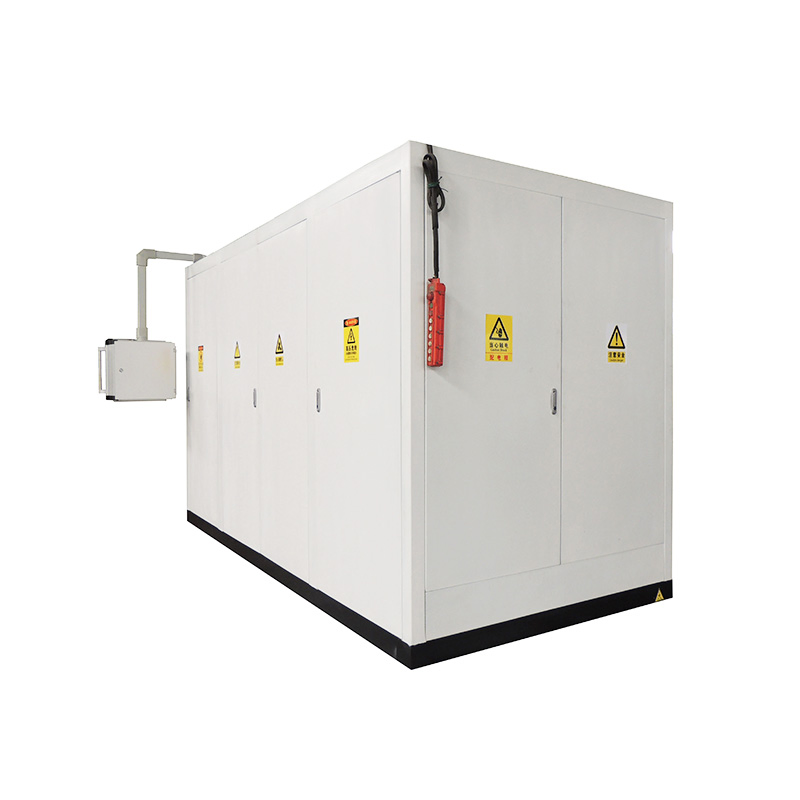

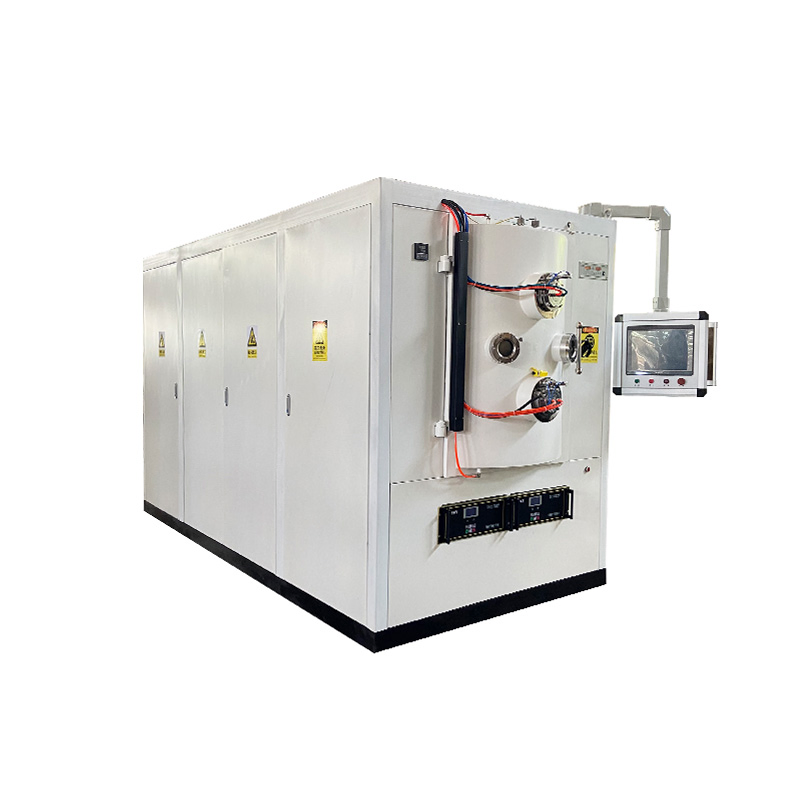

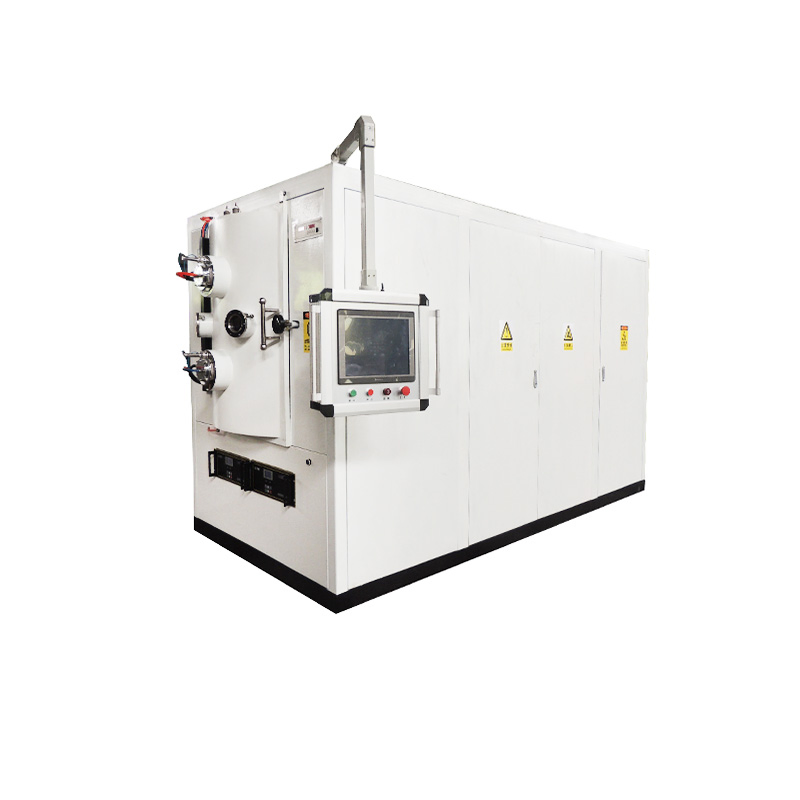

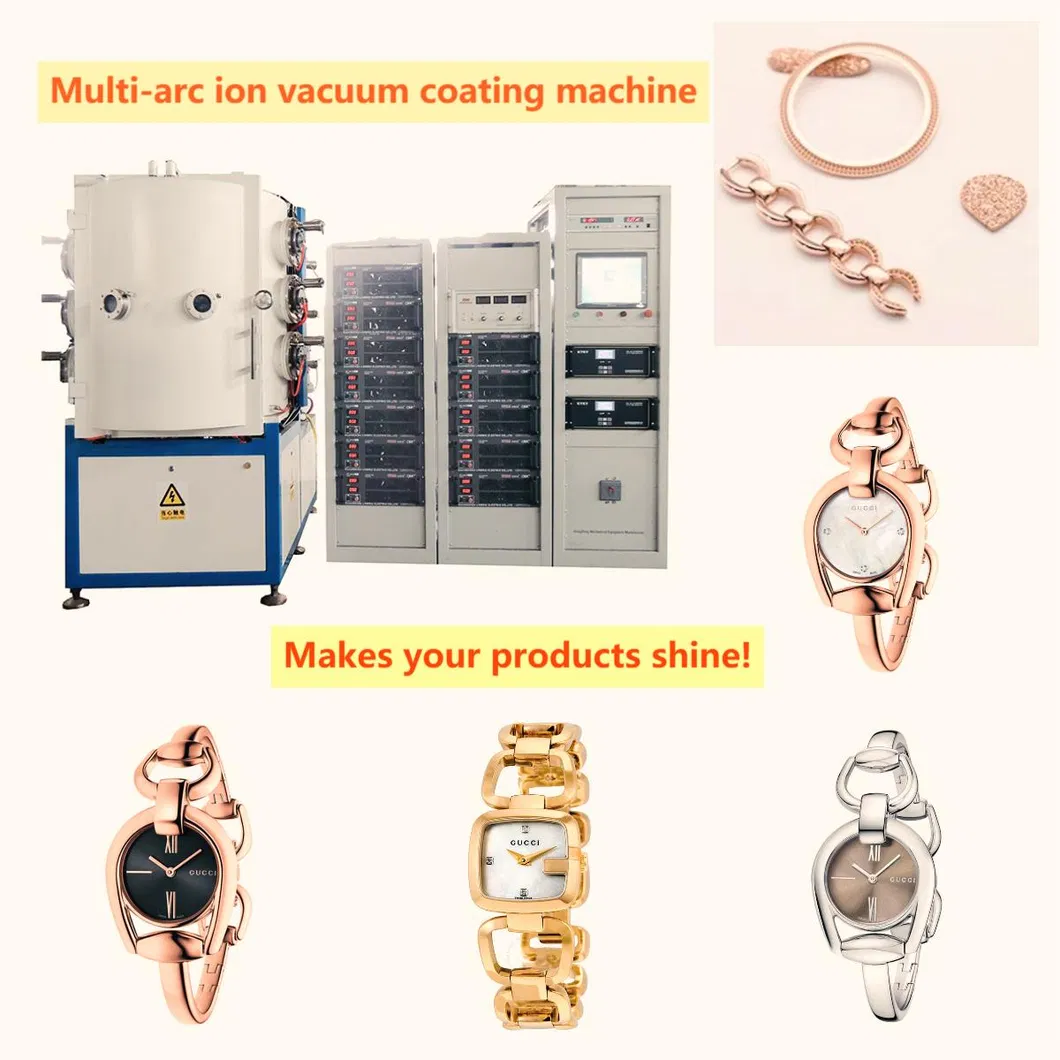

Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
This titanium nitride coating equipment is a high-tech environmentally friendly system designed for metal, glass, and surface coating. By applying PVD coatings, workpieces achieve improved hardness, exceptional wear resistance, and superior durability.
The ARC series, based on arc deposition technology, is the most suitable coating system for producing PVD hard coatings on metal tools, molds, and dies. It effectively enhances the surface aesthetic and functional properties of the products.
| Parameter | Specification Details |
|---|---|
| Model | ARC Series |
| Vacuum Chamber | SUS304, φ600mm-1200×600-1200mm (H) |
| Substrate Dome Rotation | 10 rpm to 50 rpm (Variable) |
| Arc Evaporation Source | From 2 to 16 sets |
| Vacuum System | Roughing Pump, Diffusion/Turbo Molecular + Mechanical pumps |
| Performance Metric | Value |
|---|---|
| Ultimate Pressure | 5.0×10⁻⁴ Pa or lower |
| Pump Down Rate | 25 minutes (Atm. to 5.0×10⁻³ Pa) |
| Substrate Heater | Up to 550°C (max) |
| Requirement | Value |
|---|---|
| Layout Dimensions | ~ 5000mm (W) × 6500mm (D) × 3500mm (H) |
| Power Requirements | 3-phase, 380V, 50/60Hz, ~100-180kVA |
| Cooling Water Flow | 140 L/min or greater |
| Compressed Air | 0.5 MPa or higher |
| Gross Weight | ~ 8500 kg |
Widely used in the watch industry, hardware, architecture (stainless steel plates), precision molds, tools (drill bits, cutters), and the automotive industry.
To assist in selecting the most suitable PVD coating machine, please consider the following:
