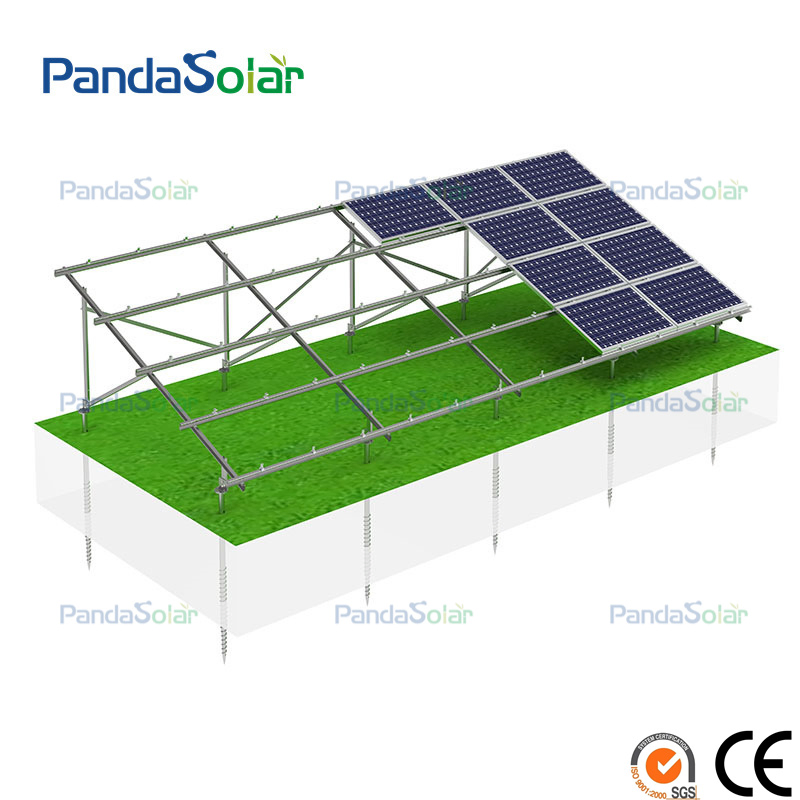

Magnesium Aluminum Zinc Ground Mounting Systems For Solar Panels:
The solar ground mounting bracket is strictly designed according to the maximum wind speed, maximum snow load, solar panel specifications and other design schemes. While ensuring sufficient strength, installation efficiency and labor costs must also be considered. It is necessary to control the cost and ensure the quality, so the service life of the bracket is very long. The support foundations are: straight into the ground, ground screws and cement piers.
GM4 double column can be ground bolt column or piling column. Ground screw posts allow for tiny height adjustments. The piling column strength is higher, and the requirements for installation accuracy are also higher.

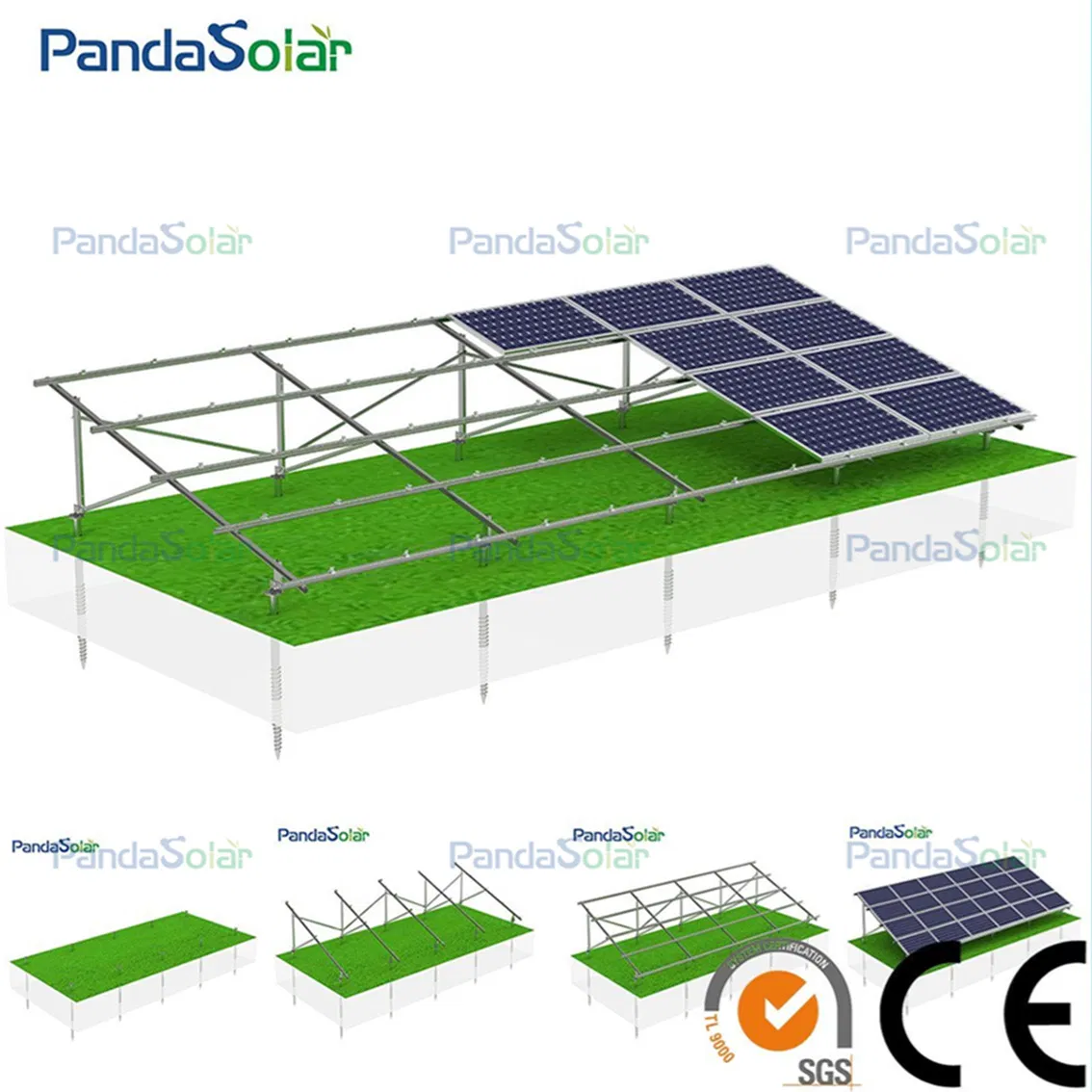

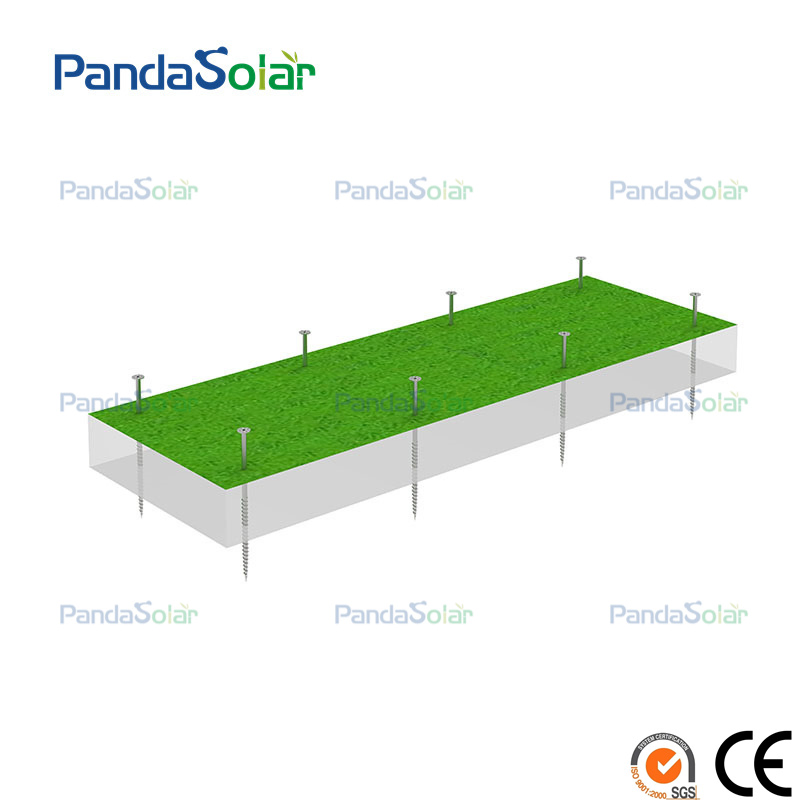

1. Installing Ground Screws: The first step is to install the ground screws. These screws are used to anchor the support structure to the ground. The screws are drilled into the soil using specialized equipment at a sufficient depth to hold the system's weight.

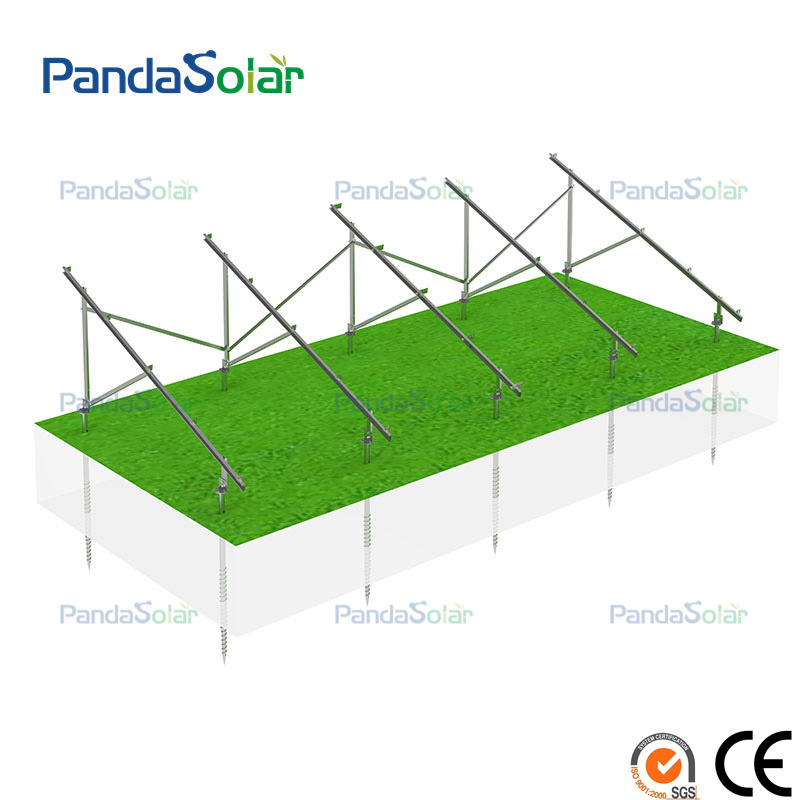

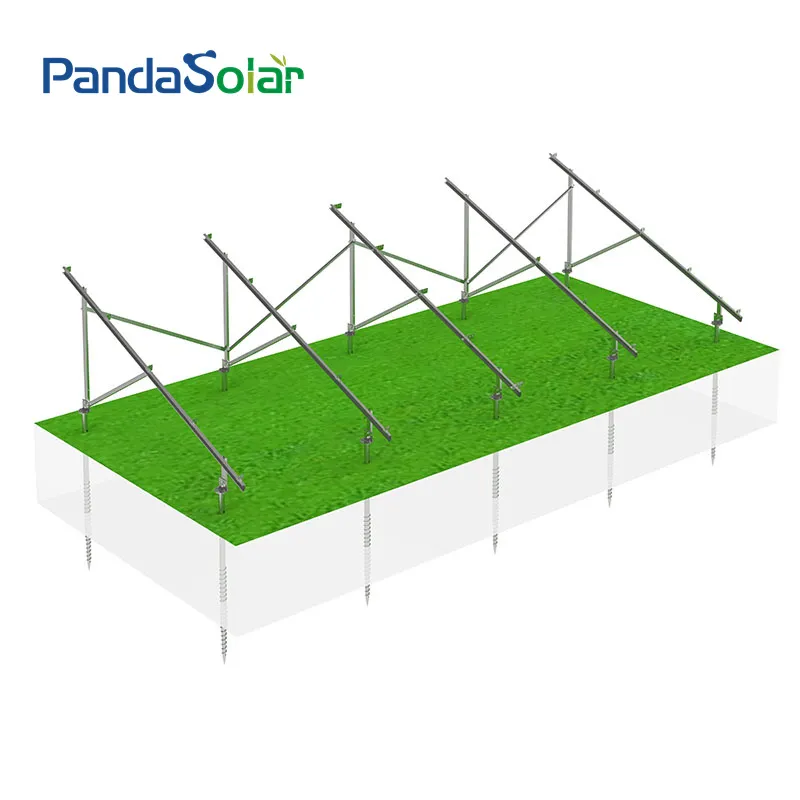

2. Install the Beams: After the foundation is ready, install the beams. Connect the diagonal support pole to the top of the pole using bolts and nuts securely.

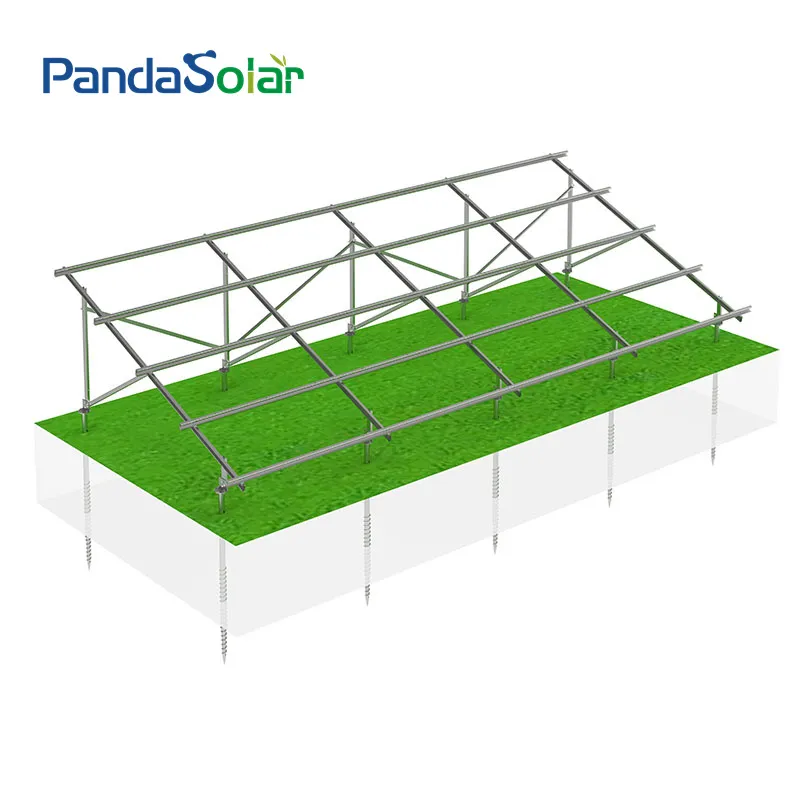

3. Installing Rails: Attach the rail that will support the solar panels to the beam using brackets and bolts. Ensure that the rail is level before proceeding.

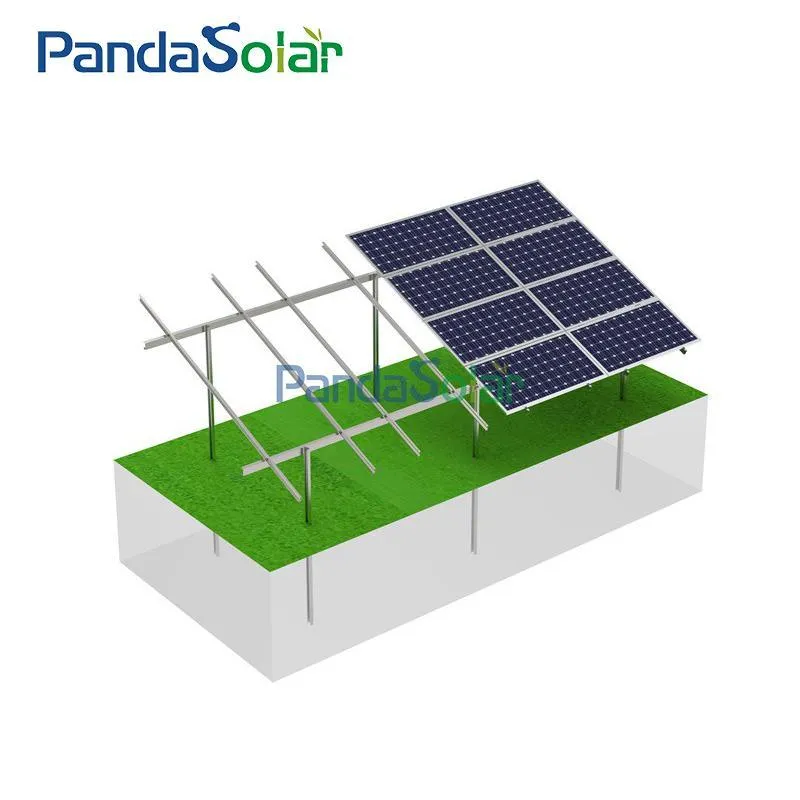

4. Installing Solar Panels: Finally, attach the solar panels to the rail using mounting hardware. Make sure that each panel is securely fastened.
| Material | Structure: Mg-Al-Zn & AL-6005-T5; Components: SUS304 & AI6005-5 |
|---|---|
| Application | Commercial and Residential installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |

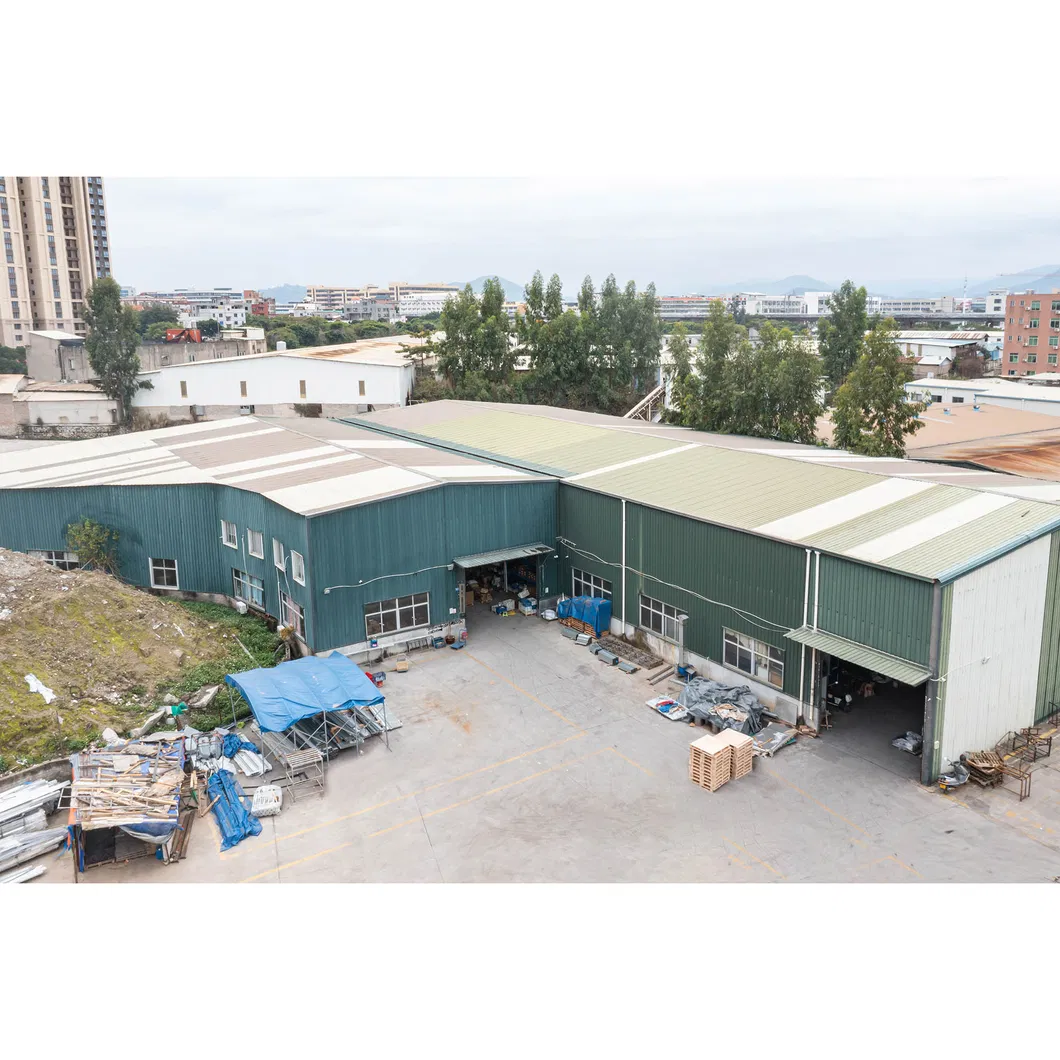

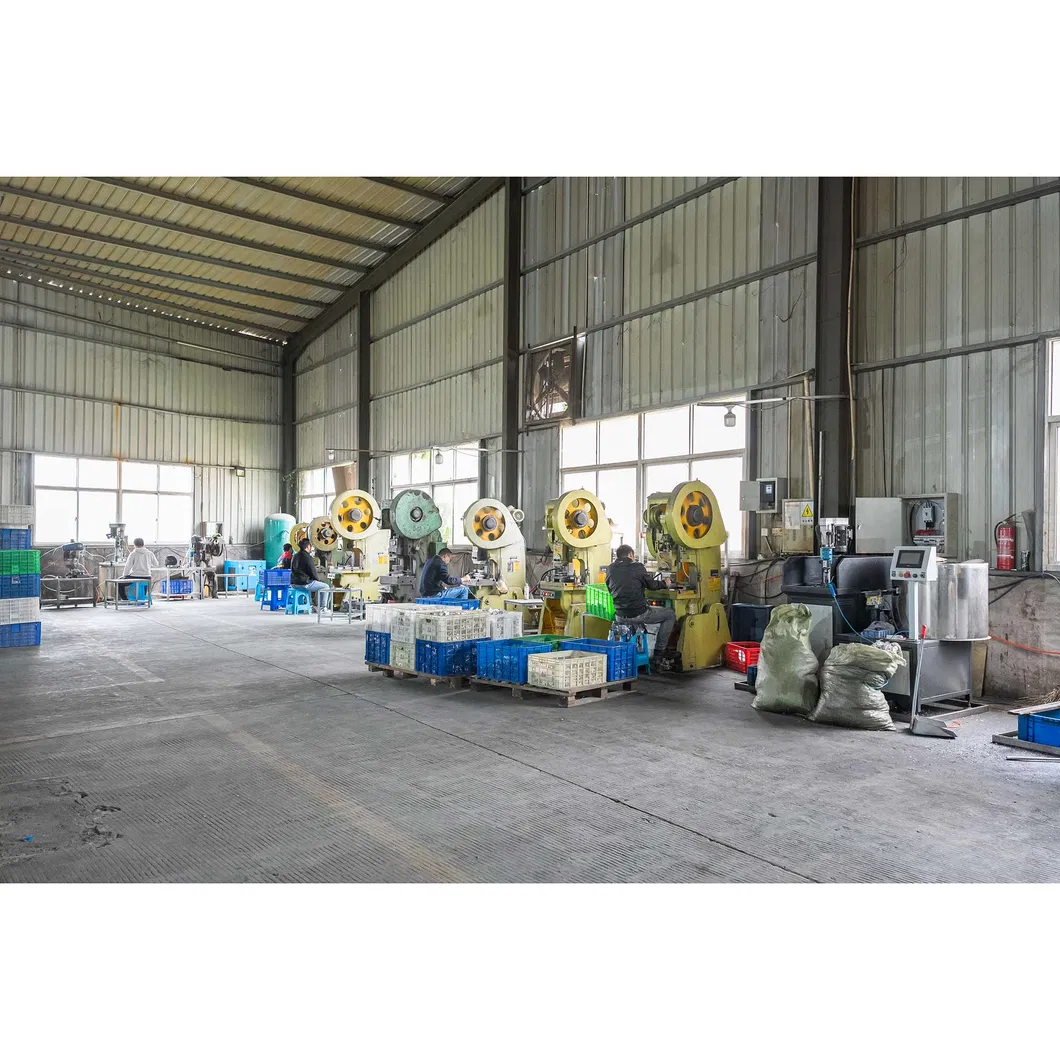

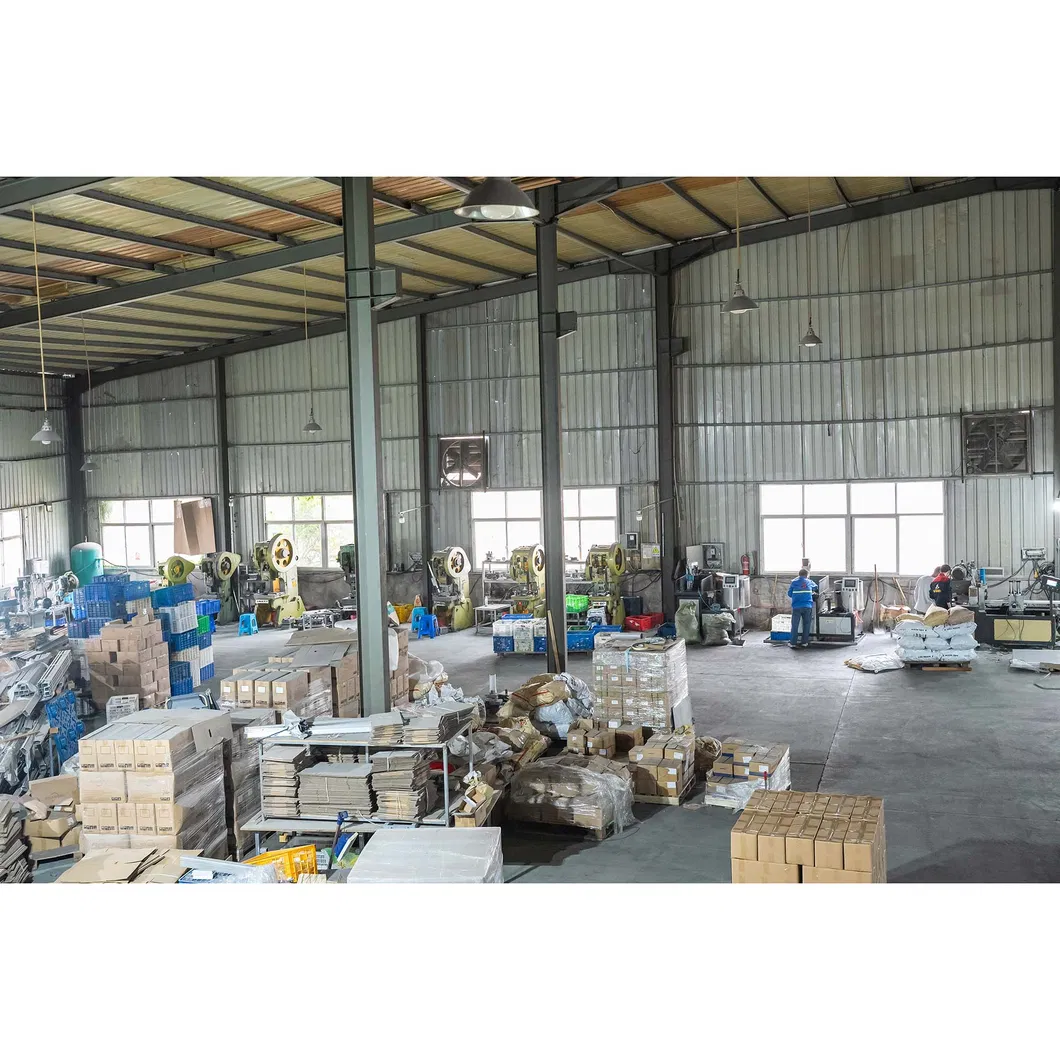

Workshop Capabilities: Professional processing for aluminum alloy and steel (Magnesium aluminum zinc/S350GD/S450GD). Equipped with 6 production lines and several molding machines, achieving a productivity of 40-50MW per month.
