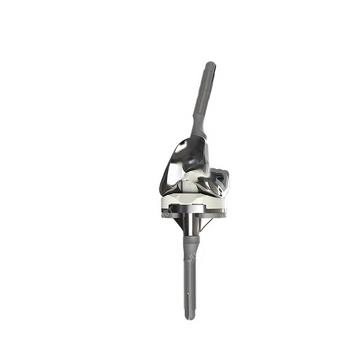

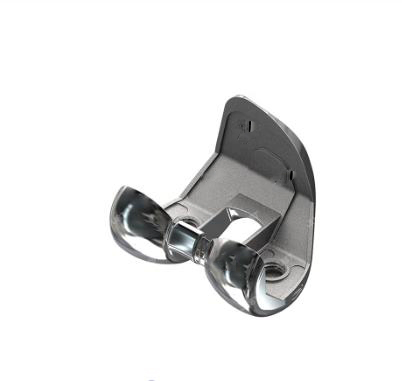

Manufacturer Rsk Femoral Condyle Revision Tka Total Knee Artificial Replacement

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information

Model NO.:Customized
Material:Cocrmo+UHMWPE
Application:Knee Replacement
Package:Sterilized Packing
Specification:Customized

Product Description

Tibial Bearing Primary TKA Total Knee Artificial Replacement High Flexion
Key Features
Femoral Condylar:
  • High flexion design
  • Optimized patellofemoral articular design
  • Almost custom-made component size, 2mm increments in A/P
  • Proportional posterior condyles for greater contact area in deep flexion
  • Mirror polished surface reduces wear and debris post-operatively
  • Soften intercondylar notch reduces post wear in flexion
  • Cam extension provides increase resistance to dislocation in deep flexion
  • Perfect match with tibial tray for near-customization
Tibial Tray & Bearing:
  • Narrowed cruciate fins preserve more bone stock
  • High polished surface minimizes back wear
  • Allows proper axial rotation and hyperextension
  • 1:1 tibial/femoral coronal congruency for high flexion
  • Patellar tendon relief facilitates increased range of motion
  • Rounded post geometry minimizes rotational forces

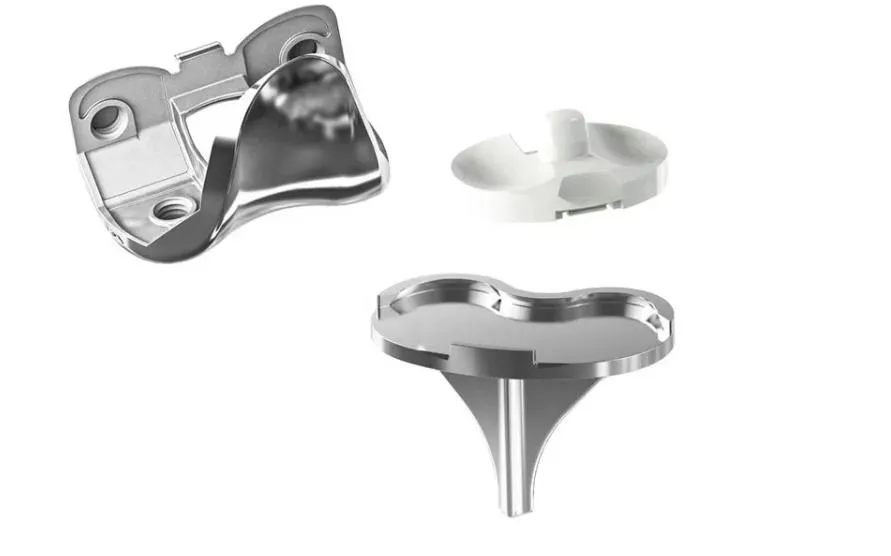

Femoral Condyle Replacement

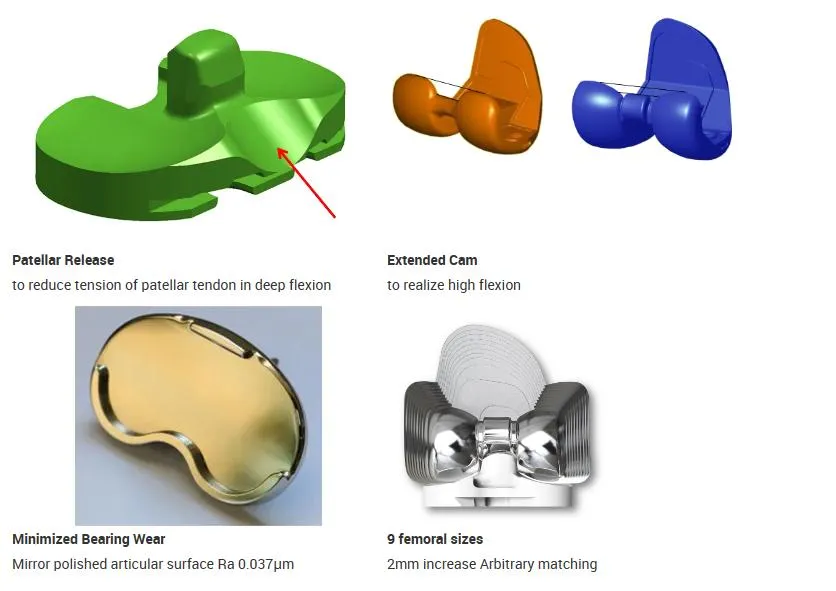

TKA Total Knee Replacement
Technical Parameters
Material:CoCrMo + Imported PE
Flexion:145° High Flexion
Stability:Post Stabilized (PS)
Finish:Mirror Polishing
Sizes:Femoral: 1#-9#, Tibial: 1#-7#, Pad: 1/2/4/6#

Design Advantages

1. Rounded Sagittal Profile
Rounded sagittal profile allows for greater range of motion and may be more forgiving to the retinaculum by not over tensioning the soft tissues.
Sagittal Profile Comparison
Anatomic (Green) vs. Swept-back Sagittal Profile (Gray)
2. Deeper Swept-back Trochlear Groove
The trochlear groove is designed to sweep back posteriorly for better patellar performance, resisting patella crepitus and clunk.
3. Extended Trochlear Groove
Lengthened to further support the patella in deep flexion and provide more support of the quadriceps tendon (105-120 degrees of flexion).
Extended Trochlear Groove
4. Wider Proximal Trochlear Groove
Provides excellent patellar tracking regardless of the patient's Q-angle. The track provides a 6.5 degree valgus angulation and a 2mm lateralized groove.
Wider Trochlear Groove

Application Steps

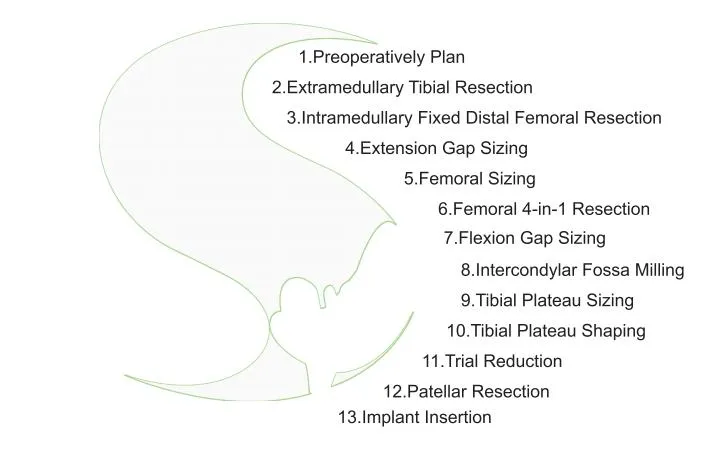

Step 1

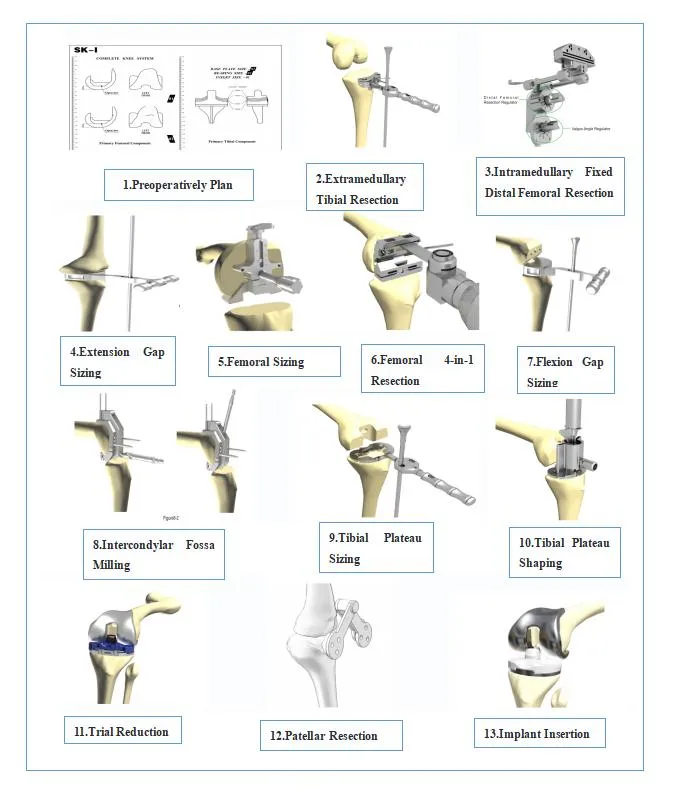

Step 2

Specifications

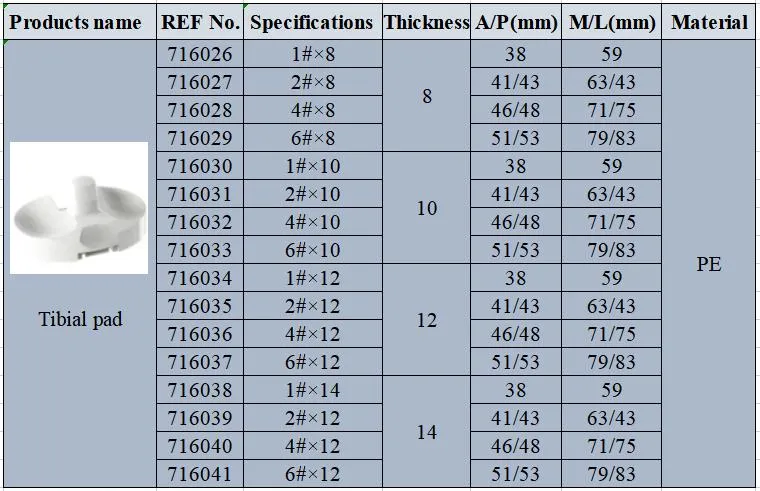

Specifications Table 1

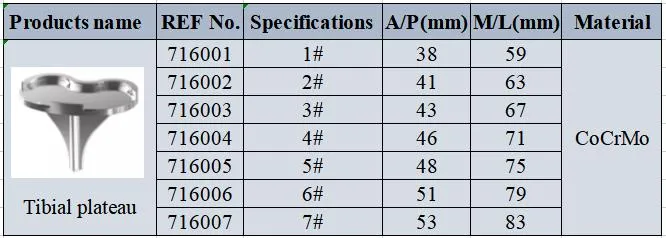

Specifications Table 2

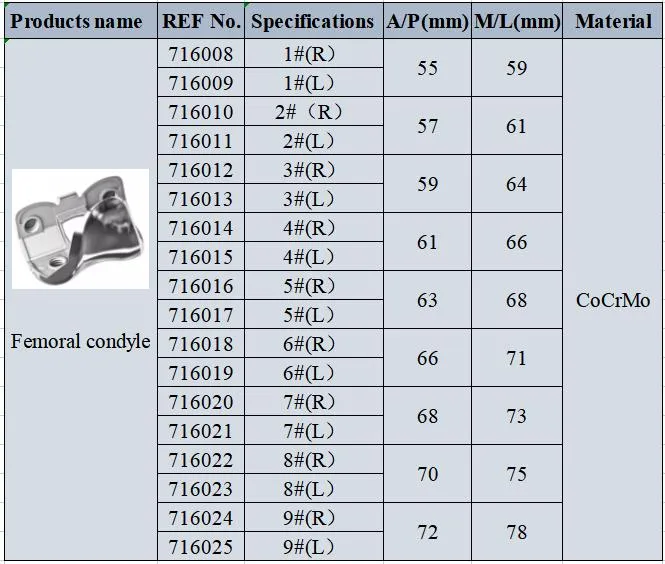

Specifications Table 3

Professional Capability

We are a high-tech enterprise led by a core technical team specializing in the design, development, and production of spherical metal powder, metal 3D printing parts, and titanium alloy products. Our products are widely applied in additive manufacturing, medical implants, and surface coatings.
Production Facility
Logistics & Delivery
Global Delivery
Certificates
Quality Certificates

FAQ

Q1: What materials are used in the knee replacement system?
The system utilizes high-quality CoCrMo (Cobalt-Chromium-Molybdenum) alloy combined with imported medical-grade UHMWPE (Ultra-High-Molecular-Weight Polyethylene).
Q2: What is the maximum range of motion supported?
The design is optimized for high flexion, allowing for a range of motion up to 145 degrees.
Q3: How long does typical delivery take?
Generally, delivery takes 8 to 15 days following receipt of advance payment, depending on order volume and specific item requirements.
Q4: Are the products tested before they are shipped?
Yes, we perform 100% rigorous testing on all goods before delivery to ensure the highest safety and quality standards.
Q5: What sizes are available for the femoral and tibial components?
We offer a wide range of sizes for a near-custom fit: Femoral components (1#-9#), Tibial trays (1#-7#), and various Pad thicknesses (1/2/4/6#).
Q6: What payment methods do you accept for international orders?
We accept multiple payment methods including T/T (Telegraphic Transfer), L/C (Letter of Credit), and Western Union.
