Product Description

📊 Basic Information

Model NO.

1-1

Connection

Common Bolt

Head Style

Round

Standard

DIN

Grade

4.8

Surface Treatment

Nickel Plating

Customization

Support

Applicable Industries

Industry, Manufacturing

Transport Package

Container

Specification

1-100

HS Code

0101101010

Production Capacity

50000

🖼️ Product Display

📝 Product Overview

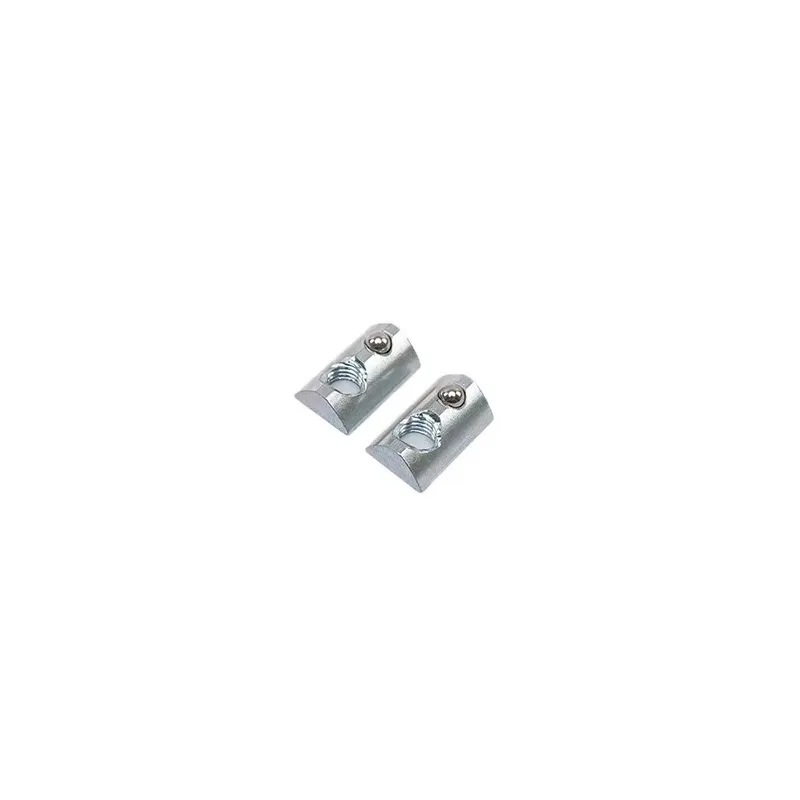

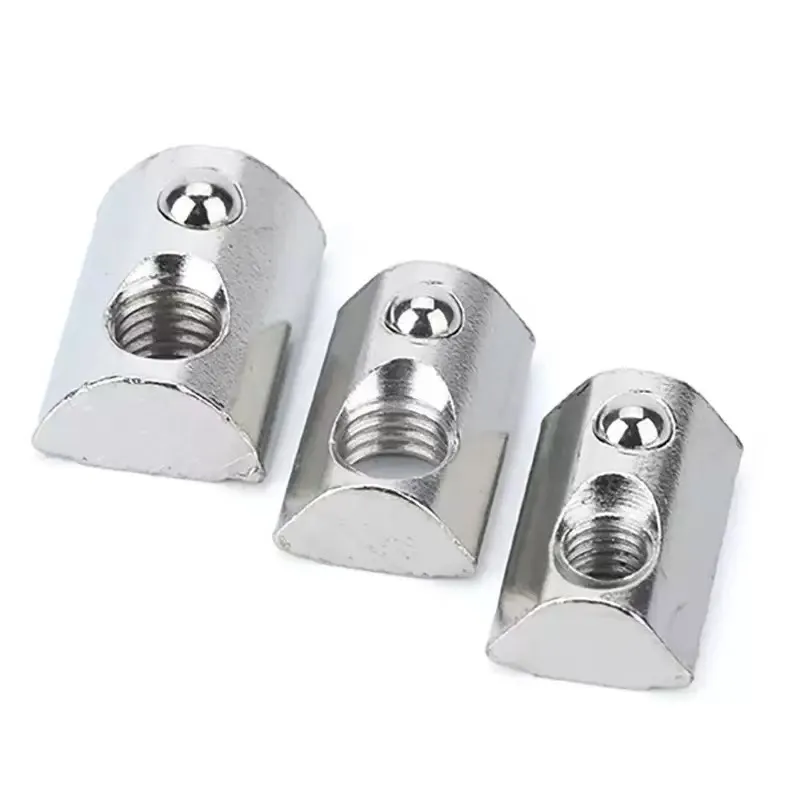

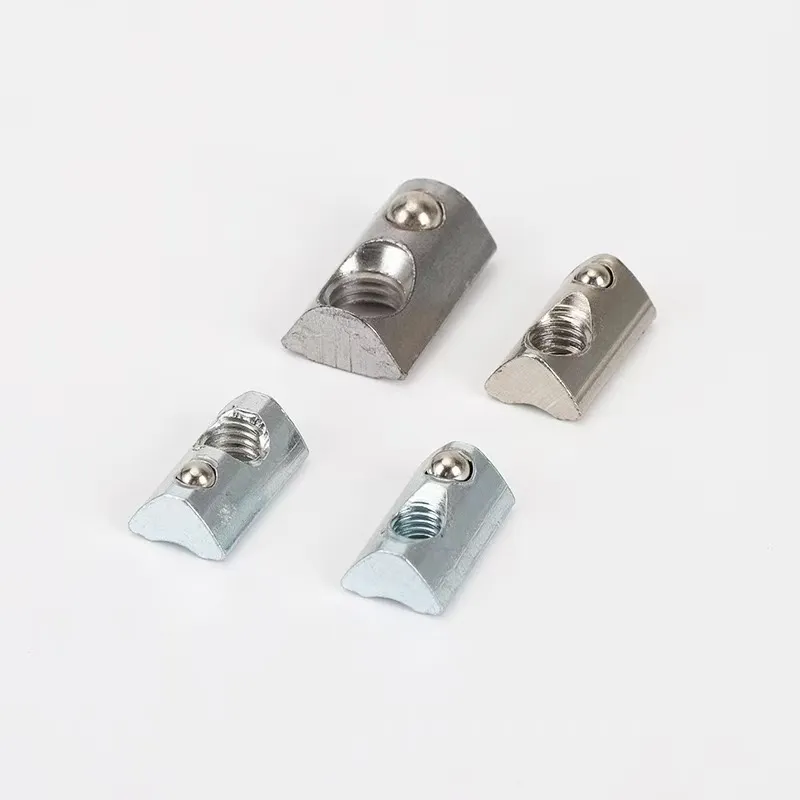

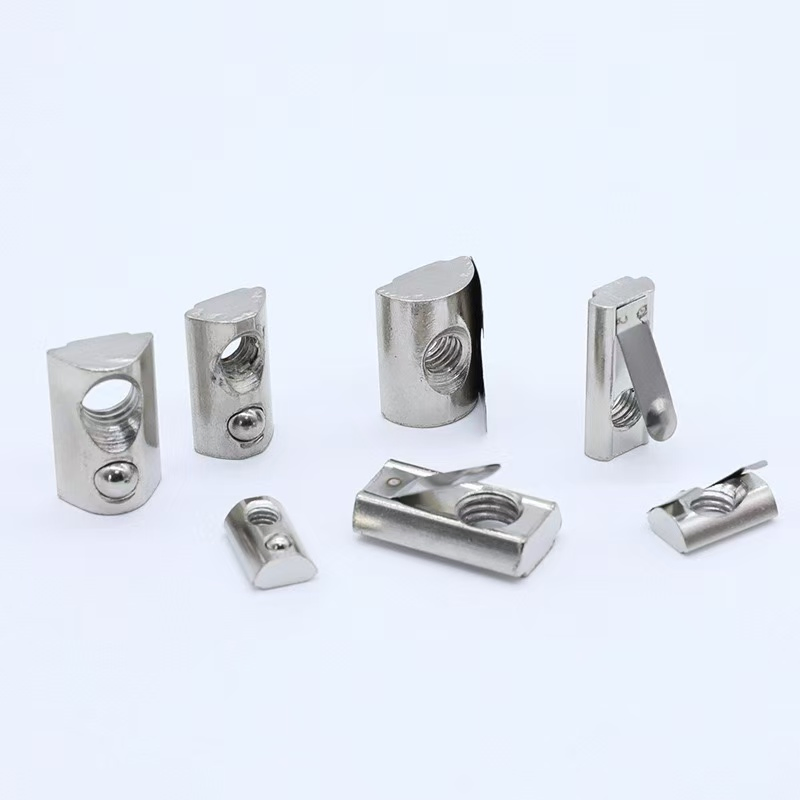

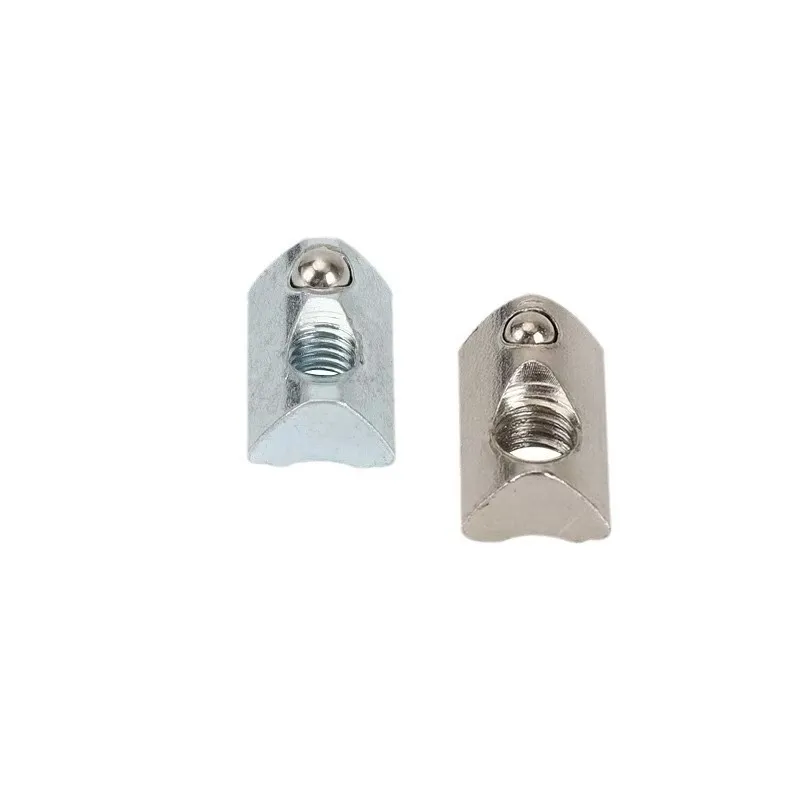

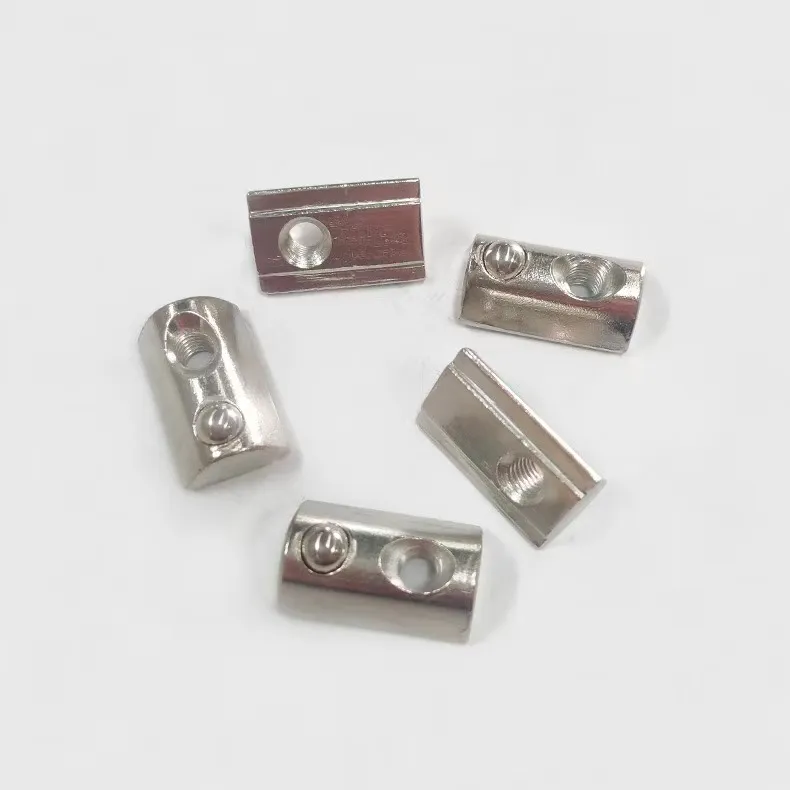

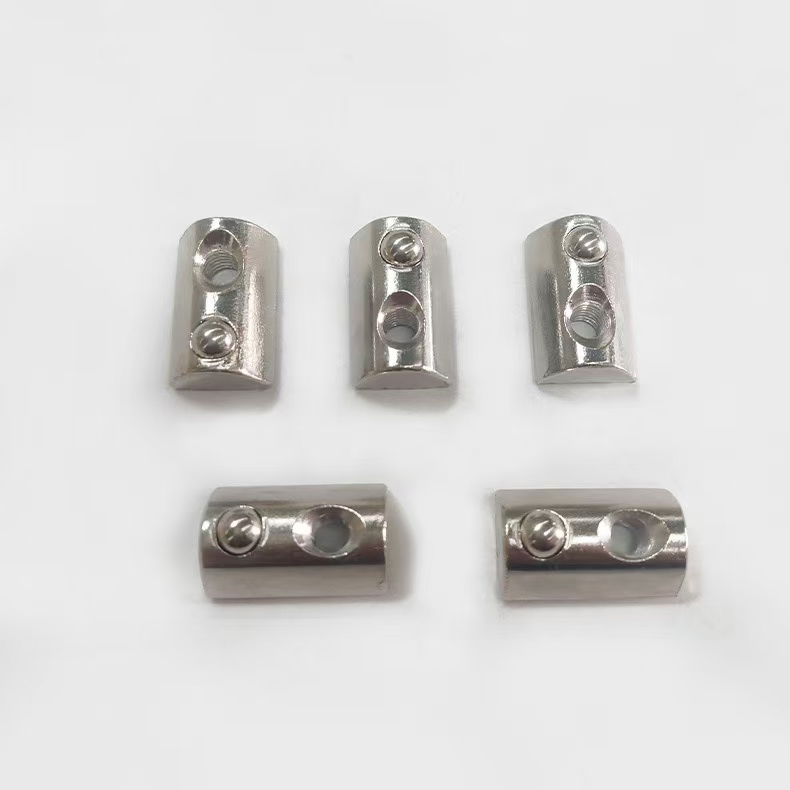

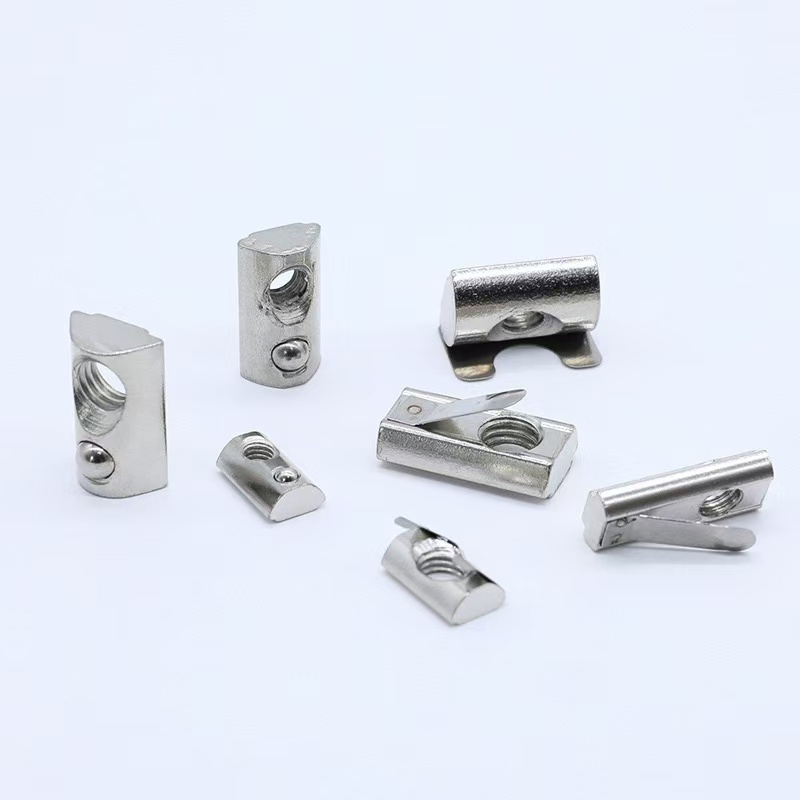

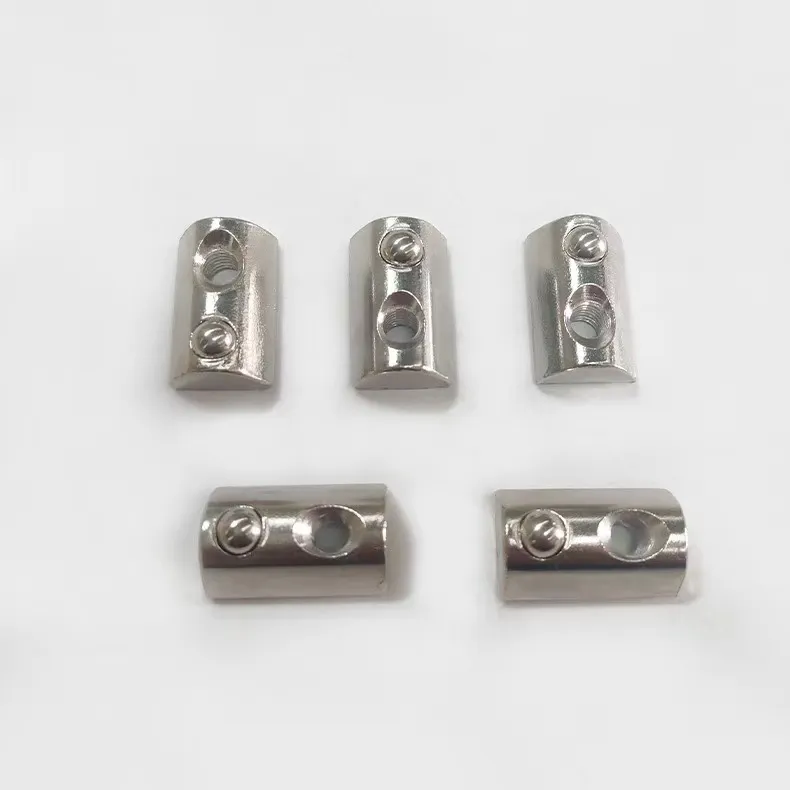

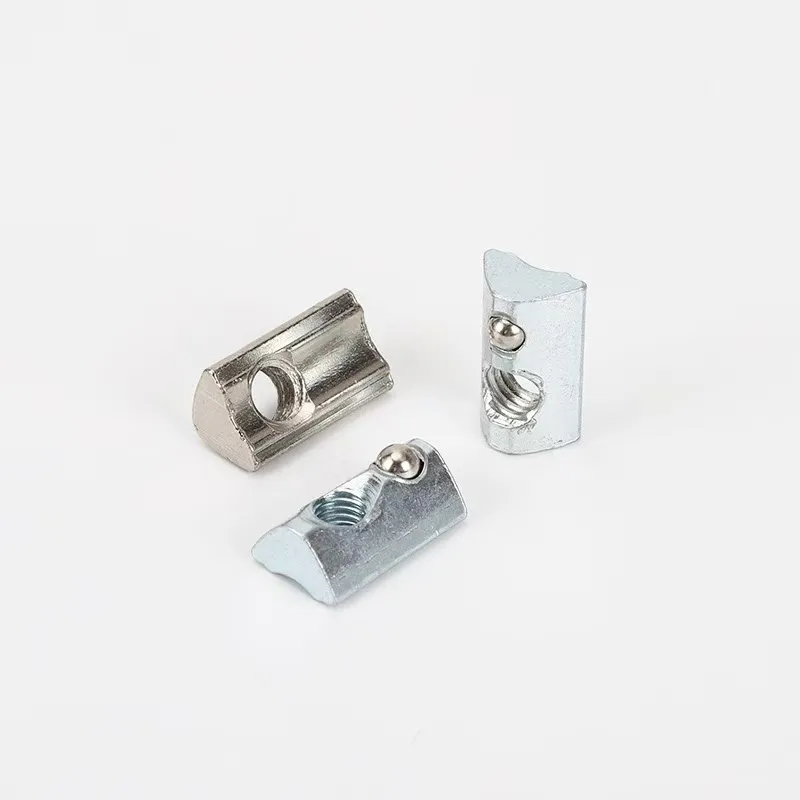

Introducing the revolutionary Pinball Nut, also fondly known as the steel ball nut or elastic nut. This uniquely designed component is engineered with a steel ball structure, making it an indispensable element in countless mechanical connection and assembly applications. Its innovative design is pivotal in ensuring precision and stability across various industries.

🛠 Detailed Structural Construction Our Pinball Nut is meticulously crafted, comprising the robust nut body, resilient steel ball, and a reset spring for unparalleled elasticity. The nut body is intentionally designed in a block shape, featuring a central threaded hole which seamlessly allows a bolt to pass through. Ingenious holes are situated at either the bottom or the side of the nut body, perfectly accommodating the steel ball.

⚙️ Exquisite Working Principle The Pinball Nut excels in fastening and precise positioning, harnessing the power of friction between the steel ball and the contact surface, coupled with the steel ball's elastic positioning prowess. When introduced to a groove, like that of an aluminum profile, the reset spring ensures the steel ball is firmly pressed against the groove's inner wall.

💎 Material Selection Available in prestigious materials such as stainless steel and carbon steel. Stainless steel variants promise outstanding rust and corrosion resistance, while carbon steel offers a cost-effective solution with remarkable strength. The steel balls are crafted from high-hardness bearing steel for exceptional wear resistance.

✅ Product Advantages Simple installation process (hand-pressing), exceptional positioning capabilities, vertical and inclined surface stability, and seismic resilience to minimize the risk of loosening under vibrational conditions.

🚀 Diverse Application Scenarios

The Pinball Nut finds extensive use in constructing industrial aluminum profile frames, automation equipment racks, assembly line workbenches, and electronic device manufacturing. It is also a popular choice for quick assembly/disassembly in display stands and experimental devices.

❓ Frequently Asked Questions

What are the other names for a Pinball Nut?

It is also commonly referred to as a steel ball nut or an elastic nut.

What materials are available for the nut body?

The nut body is available in stainless steel for corrosion resistance and carbon steel for high-strength, cost-effective applications.

How does the positioning mechanism work?

It uses a reset spring to press a steel ball against the inner wall of a groove, creating friction that prevents sliding and ensures stable positioning.

Is professional expertise required for installation?

No, the installation is incredibly simple and can often be achieved by hand-pressing the nut into an aluminum groove.

Can it be used in high-vibration environments?

Yes, it features seismic resilience, which maintains connection reliability and minimizes the risk of loosening under vibration.

What industries typically use this product?

It is widely used in industrial automation, electronics manufacturing, assembly line construction, and mechanical engineering.
